PHYWE LEX-1404 leXsolar-Wind Large
Manufacturer: PHYWE Model: LEX-1404 - Request a Quotation
- Request a Quotation
- Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
- Description:
This system provides you with all the answers you need concerning the basics of using wind energy. With the help of curriculum-based experiments, it discusses different topics which are necessary for understanding the functions of wind power plants. The study of how wind speed, wind direction or rotor type influences the power output are only some examples of possible experiments. Both qualitative experiments for students from age of 11 to 13 and complete quantitative trials for physics lessons until the age of 19 are described in detail.
- Experiments:
Influence of the wind speed on a wind turbine
Start-up wind speed at a wind turbine
Comparison of the start-up wind speed of a Savonius and a three-blade rotor
Change the turbine voltage by connecting a consumer
Examine the wind speed behind the rotor
Energy balance sheet at a wind turbine
Calculating the efficiency of a wind turbine
Storing electric energy
Energy conversion in a wind turbine
Examine color wheels using a wind turbine
Comparison of a Savonius rotor and a three-blade rotor
Comparison of two, three and four-blade rotors
Characteristic curves of a wind turbine
Influence of the wind direction
Influence of the rotor blade pitch
Influence of the rotor blade pitch on the start up speed of a wind turbine
Influence of the blade shape

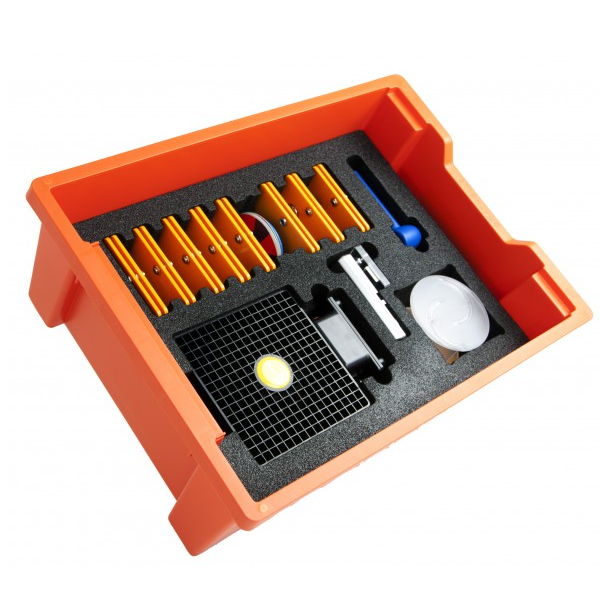

- List of components included:
1 x Base unit Large
1 x Resistor module
1 x Potentiometer module
1 x Savonius rotor module
1 x Capacitor module 220 mF, 2.5V
1 x LED-module 2mA, red
1 x Wind rotor set
1 x Wind machine
1 x Wind turbine module
1 x Storage box
1 x Buzzer module
1 x Light bulb module
1 x Motor module without gear
1 x Color discs - Set 1
1 x Tray lid
- Required accessories:
1 x AV-Module (item no. LEX-9100-03)
1 x PowerModule (item no. LEX-9100-05)
2 x Test lead black 25 cm (item no. 07335-05)
2 x Test lead red 25 cm (item no. 07335-01)
- Optional accessories:
To measure wind velocity: Cobra SMARTsense - Weatherstation (item no. 12946-00)
