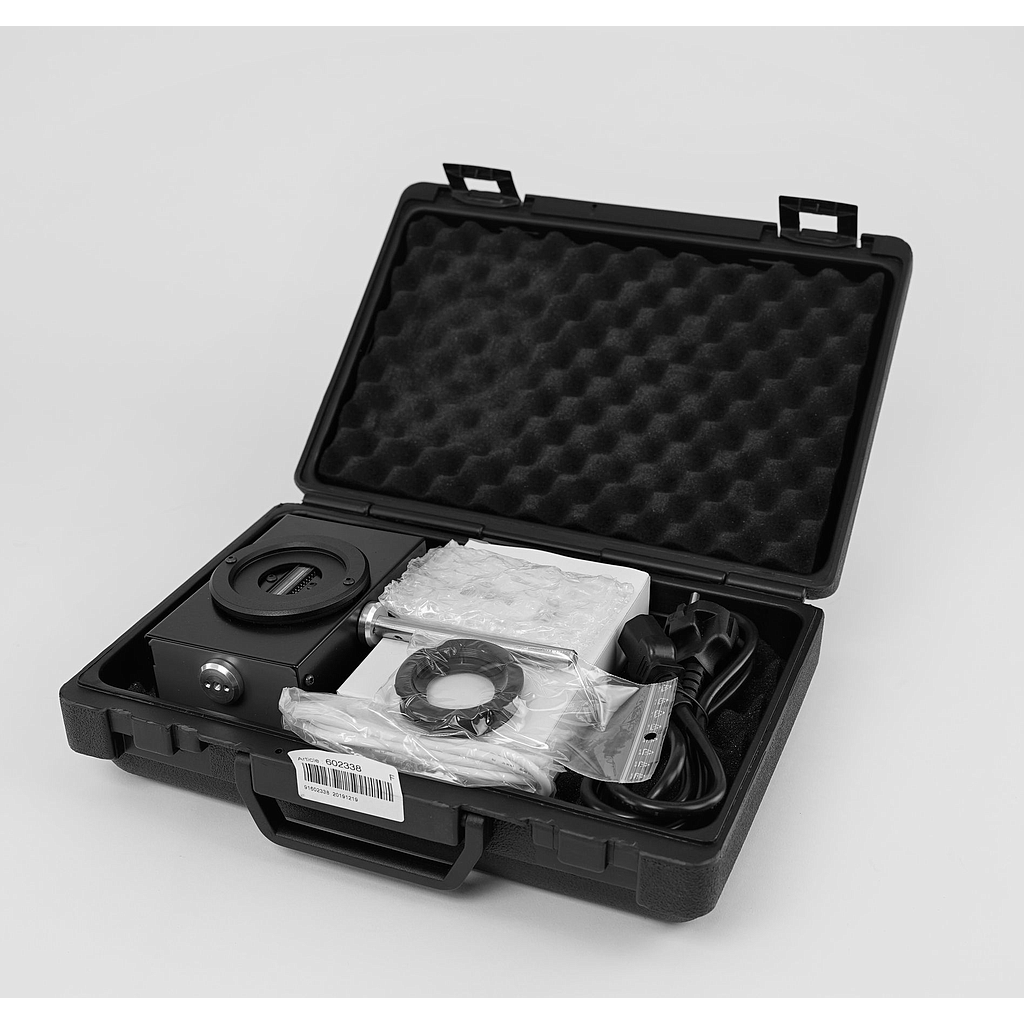

PHYWE 35612-99 Digital Array Camera

-  Function and use:

With this device, the light intensity received from the CCD sensor can be examined as a function of position (in pixels or mm) of time.

- Advantages:

• Immediate results

• Integrated assistants

• Easy-to-use features

• Screw-on handle: horizontal and vertical alignment possible

- Equipment and technical data:

• 3648 pixel sensor

• Internal memory

• Immediately filter function

• High quality results through 16-bit dynamics

• High signal stability

• High resolution: 1 pixel / 0.8 micrometer over 30 mm

• Housing: metal

• Handle diameter: 10 mm

• Handle length: 100 mm

• Dimensions (mm): 83 x 128 x 63
