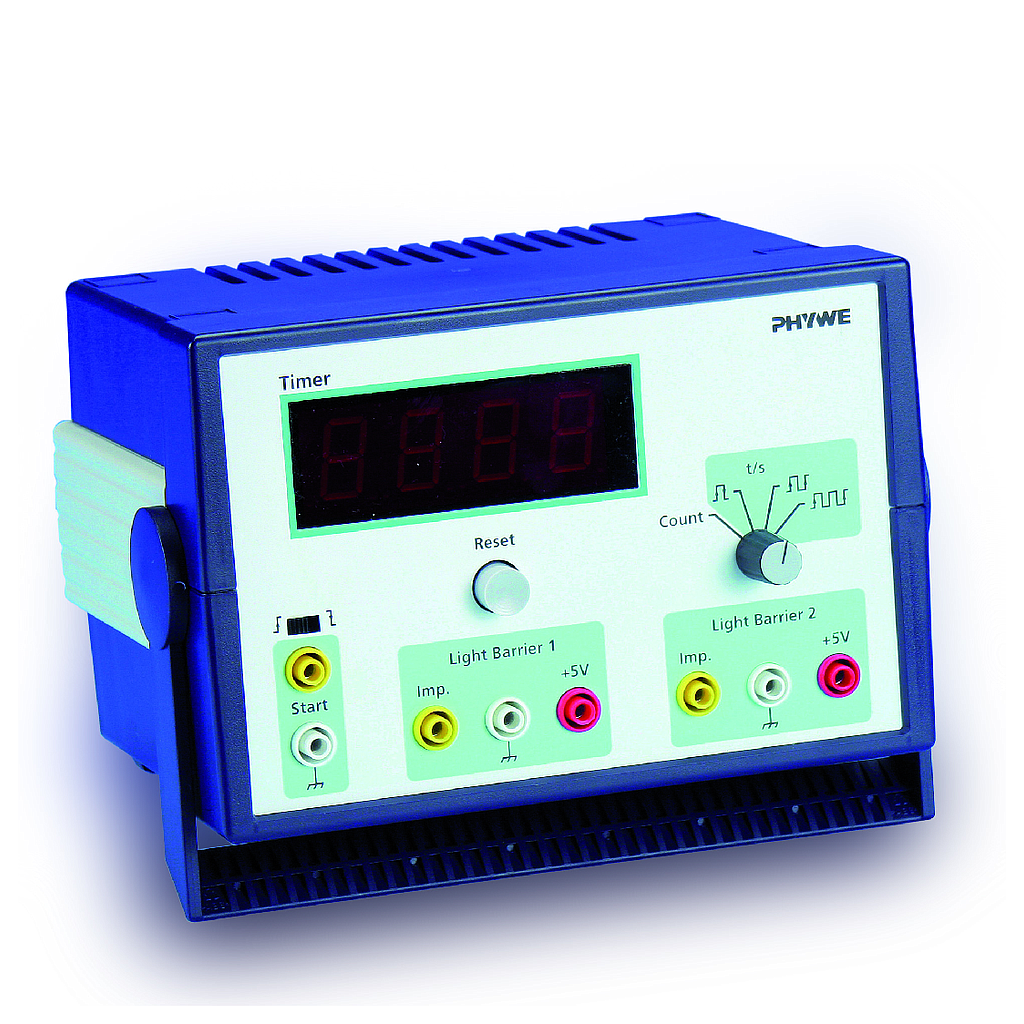

PHYWE 13607-99 Timer 2-1 (0,000 - 9,999 s)

- Function and Applications:

The chronometer Timer 2-1 has a 4-digit digital display and has been specially designed for use in student experiments and demonstrative teacher experiments.

- Benefits:

• The starting and stopping of the built-in timer piece, as well as counting, is effected by the opening and closing of electrical circuits, across light barriers or other TTL signal sources.

• Many and various experimental requirements can be fullfilled with the 4 different operating modes that the Timer 2-1 makes available for track experiments, for the measurement of the time, of revolution, of a turning movement, for the direct measurement of the period of a full swing, of a mechanical pendulum and for the counting of events

- Equipment and Technical Data:

• Operating temperature range: 5-40°C

• Relative humidity: < 80%

• Control: (Start/ Stop) by electricalcircuits (contact closure/ contact opening or level ACC to TTL-Norm)

• Digital display: 4-Digit LED display, digit height 19 mm

• Time measurement: Measuring range 0.000-9.999 s, resolution 1 ms

• Pulse counting: Measurement range: 0-9999 pulses

• Limiting frequency: 1 kHz,

• Shading period: > 500 µs

• Operating voltage: (Stabilized) 5 V ± 5 %, (suitable power supply 5 VDC/ 2.4 A, 13900-99, standardly supplied)

• Power consumption: 1.8 VA

• Supply connector: connecting socket for hollow plug, diam. 2.1 mm at the back of the instrument, 5 VDC/ 350 mA

• Overvoltage and reverse polarity protection: up to max. 12 V

• Housing dimensions (mm): 190 × 130 × 140 (W, H, D)

• Weight: approx. 920 g

- Scope of delivery:

• Power supply 5 VDC/4 A, according EN61558-2-16: 12651-99, 1
