PHYWE 06765-00 leXsolar-H2 Ready-to-go 2.0

- Function and Applications:

The experiment set provides the complete bandwidth of current fuel cell technology. Solar module, electrolyzer, and fuel cell permit the assembling and examination of a solar-hydrogen cycle. Working principles, efficiency and characteristics curves of electrolyzer and fuel cell are just some of the topics covered. In addition to a PEM fuel cell an ethanol fuel cell is also included so that different technologies can be compared with one another. Hydrogen can also be produced and stored.

- Benefits:

  • Ideal for vocational schools, colleges and engineering degree courses

  • Connector system for easy and fast assembly

  • Learn about different fuel cell types

  • Build a fuel cell stack

  • All necessary equipment already included

  • Can be used everywhere since all componentes are provided in a transport case

- Equipment and Technical Data:

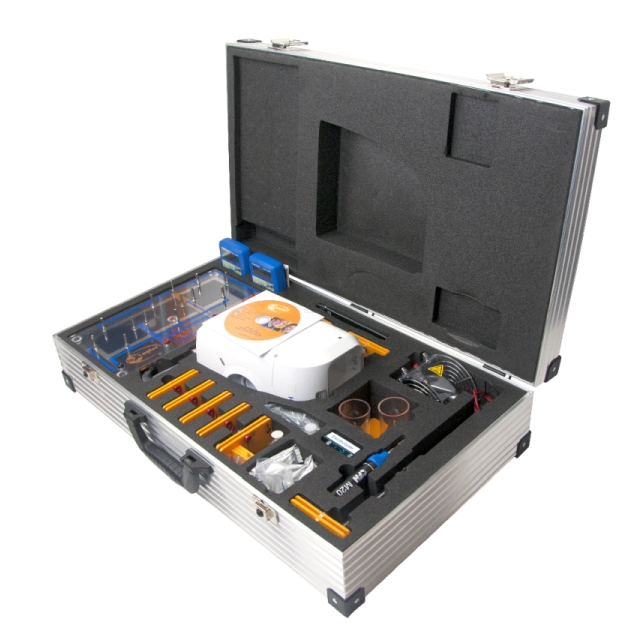

  • In the transport case (dimensions: 64 x 37 x 17 cm) all items to perform the following experiments are provided so that no additional accessories are needed:

  • Set up of an electrolyzer and the different fuel cells

  • Properties of an electrolyzer, a PEM fuel cell and an ethanol fuel cell

  • Characteristic curve of an electrolyzer, a PEM fuel cell and an ethanol fuel cell

  • Hydrogen production and storage

  • Faraday and energy efficiency of the electrolyzer and of the PEM-fuel cell

  • Parallel- and series connection of PEM-fuel cells

- The set includes:

  • Solar module and modules with potentiometer and motor

  • Modules to produce and store hydrogen

  • Electrolyser, PEM fuel cell and ethanol fuel cell

  • Digital multimeter

  • Lamp with table clamp

- Additional accessories:

  • Download key for detailed student and teacher guides
