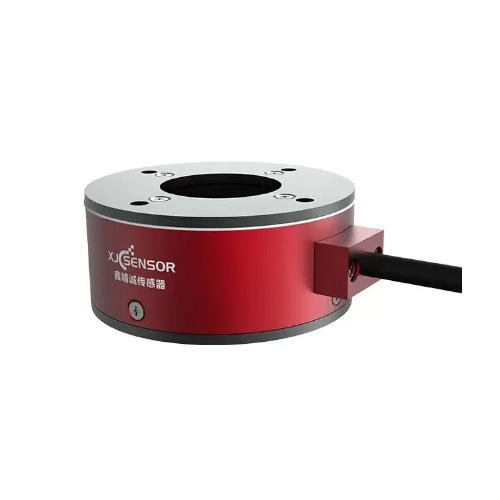

XJCSENSOR X-6A-D55-H24 6轴力/扭矩传感器 (50N~100N)

Capacity: 50N~100N

Non-linearity: ≤±0.5%F.S.

Repeatability: ≤±0.05%F.S.

Zero balance: ±5%F.S.

Operating temp range: -20~80°C

Compensated temp range: -10~40°C

Insulation: ≥2000MΩ/50VDC

Recommended excitation voltage: 5VDC

Safe load limit: 300%F.S.

Temp effect on output: ≤0.2%F.S./10°C

Temp effect on zero: ≤0.2%F.S./10°C

Long-term crosstalk error: ≤3-5%F.S.

Protection class: IP65

Cable size: φ2.4*3m+Lemo14 PIN plug (Option)
