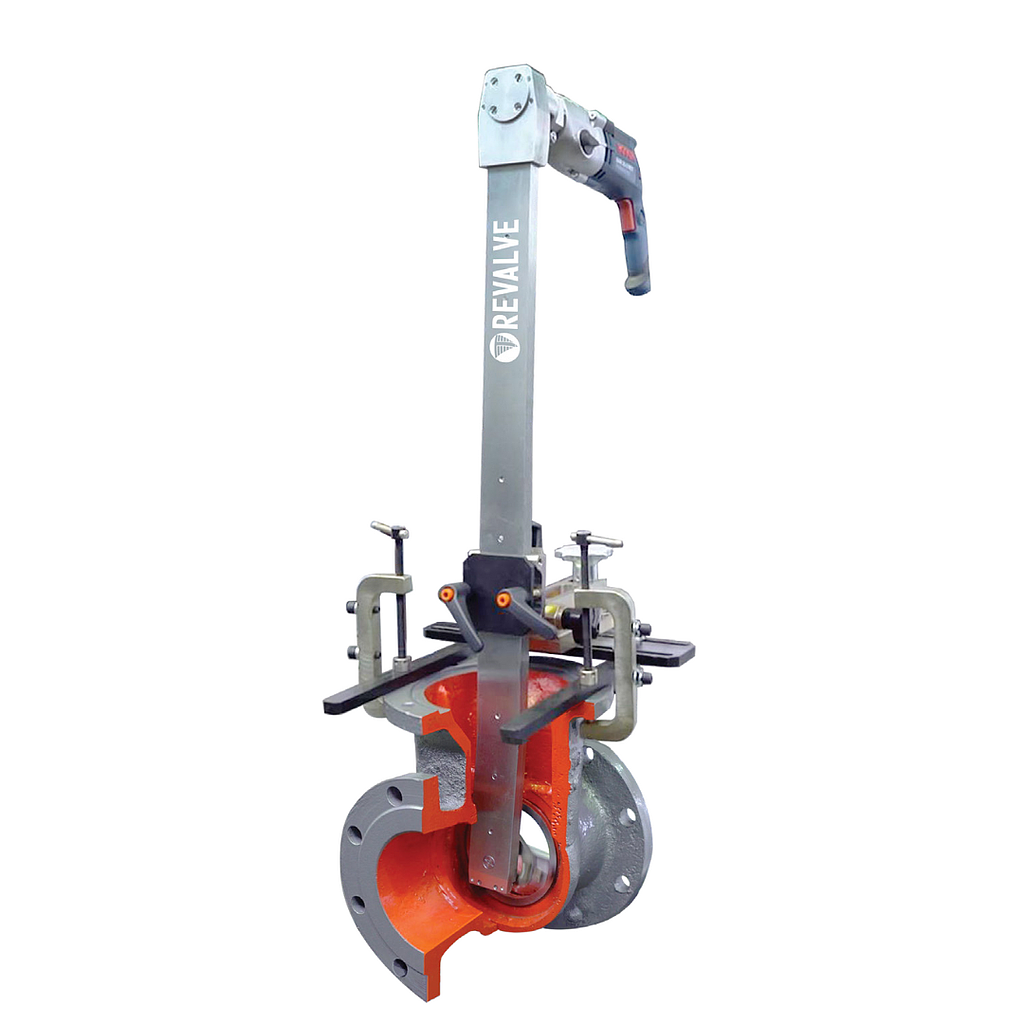

Revalve PUR-1 Portable machine for grinding and lapping of gate valves

Specification:

Valve range, DN, mm (″): 50…250 (2...10)

Immersion depth - T (″): 635 (25) mm

Minimum size - А (″): 40 (2)mm

Electric drive:

- Power supply: 230 /50 V/Hz

- Power consumption: 1,3 kW.

Pneumatic drive:

- Power: 0,83 kW

- Air flow rate: 1,6 (423) m³/min (gl/min)

- Compressed-air working pressure, bar (psi): 6,3 (91)

Weight:

- The heaviest mounted assembly: 13,6kg

- Set: 49kg

Details
