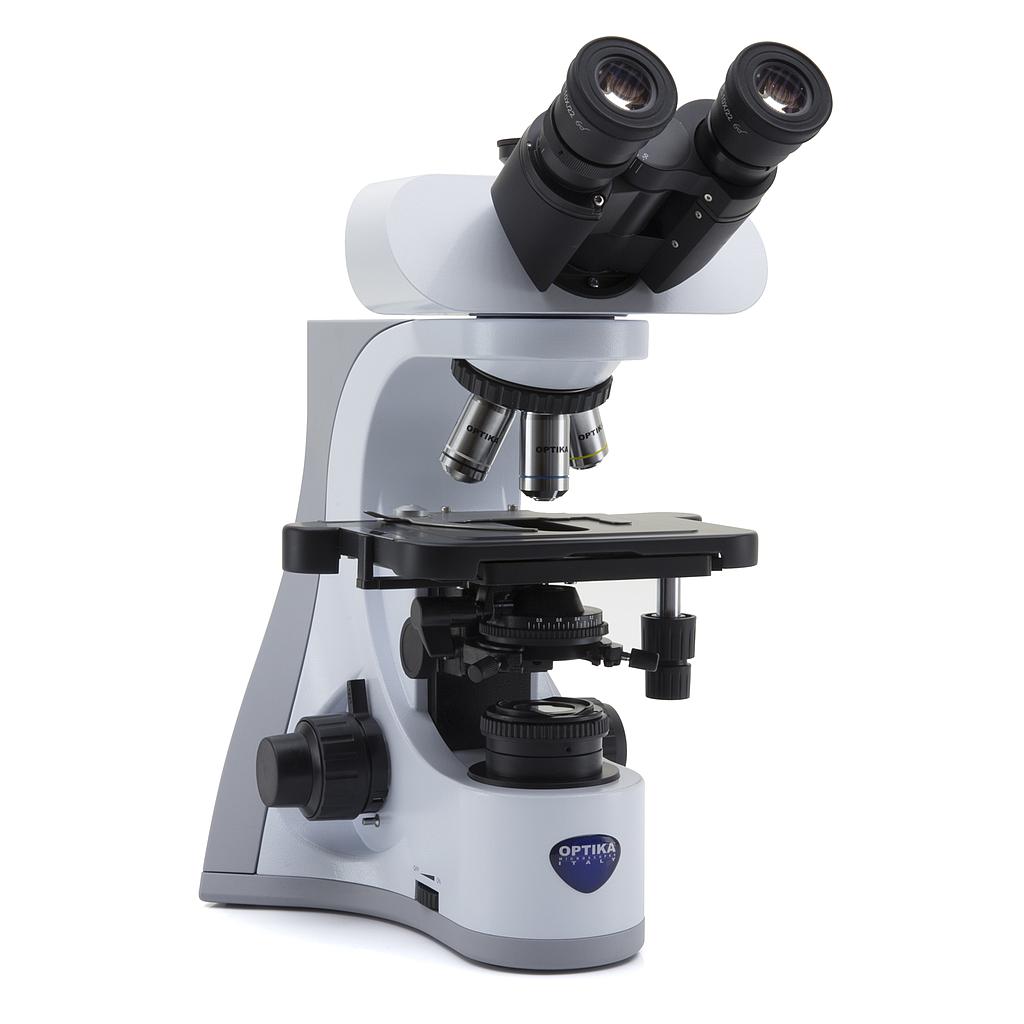

Observation mode: Brightfield.
Head: Trinocular (fixed 50/50), 30° inclined, 360° rotating.
Interpupillary distance: Adjustable between 50 and 75 mm.
Dioptric adjustment: On the left eyepiece tube.
Eyepieces: WF10x/22 mm, high eye-point and with rubber cups.
Nosepiece: Quintuple revolving nosepiece, rotation on ball bearings.
– IOS W-PLAN 4x/0.10
– IOS W-PLAN 10x/0.25
– IOS W-PLAN 40x/0.65
– IOS W-PLAN 100x/1.25 (Oil)
All with anti-fungus treatment.
Specimen stage: Double layer rackless mechanical stage, 233×147 mm, 78×54 mm X-Y range.
Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.
Condenser: Swing-out N.A. 0.2/0.9, with iris diaphragm, focusable and centerable.
Transmitted illumination (Full Koehler type): X-LED³ with white 3.6 W LED (6,300K) with brightness control. Multi-plug 100-240Vac/6Vdc external power supply.
