Observation mode: Brightfield.

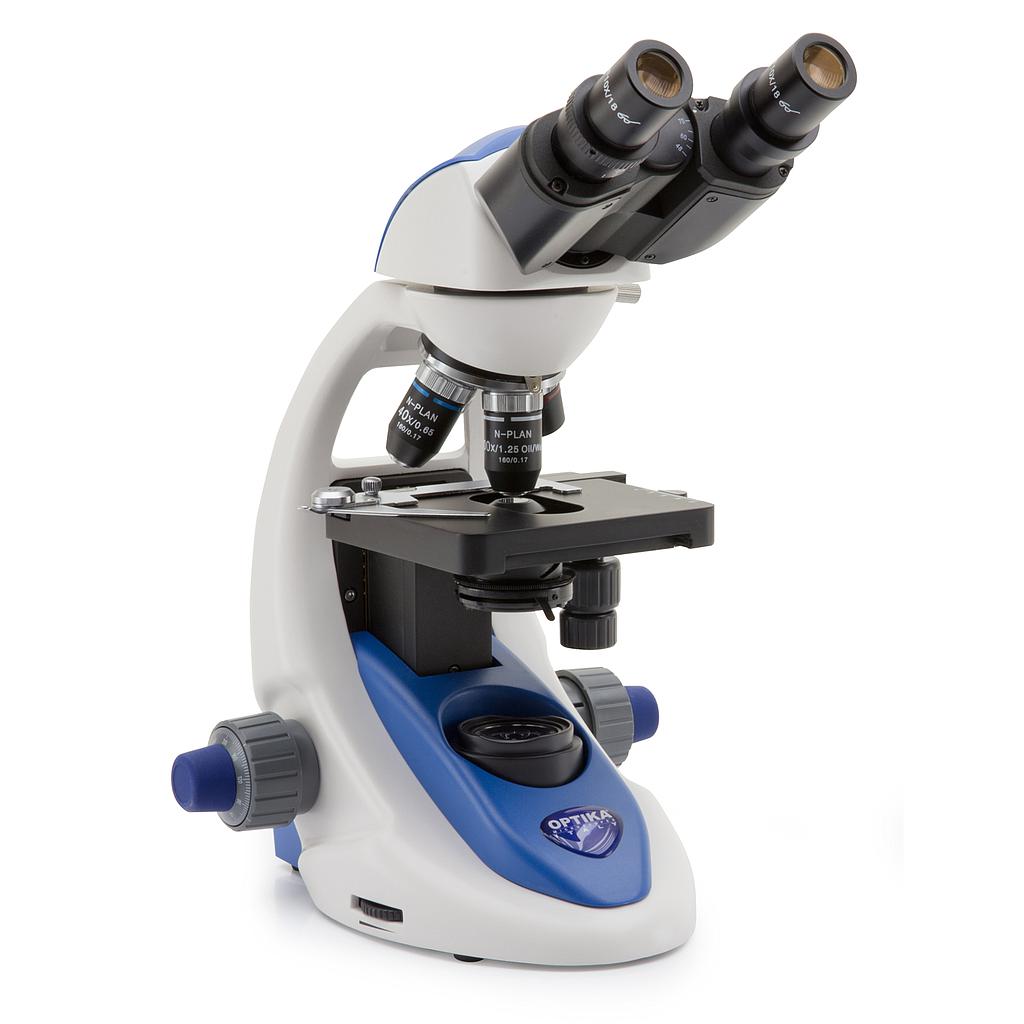

Head: Binocular, 360° rotating and 30° inclined. Interpupillary distance from 48 to 75 mm; dioptric adjuctment on left eyepiece.
Eyepieces: WF 10x/18 mm, secured by screw.
Nosepiece: Quadruple revolving nosepiece, rotation on ball bearings.
– N-PLAN objective 4x/0.10
– N-PLAN objective 10x/0.25
– N-PLAN objective 40x/0.65
– N-PLAN objective 100x/1.25 (Oil/Water)
All with anti-fungus treatment.
Specimen stage: Double layer mechanical sliding stage, 125×115 mm, 70×30 mm X-Y movement range. Vernier scale on the two axes, accuracy: 0.1mm.
Focusing: Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. Adjustable tension of coarse focusing knob.
Condenser: Abbe N.A. 1.25, pre-centered, adjustable height with iris diaphragm.
Illumination: X-LED² with white 3 W LED and light intensity control.
Color temperature: 6,300 K. Multi-plug 100-240Vac/6Vdc external power supply.
