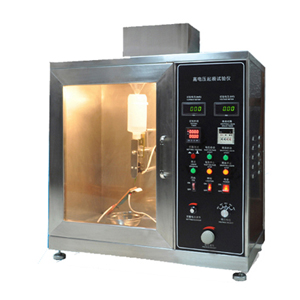

Lonroy LR-K008 高压跳动测试仪 (AC 220V / 50Hz)

The box: more than 0.1 cubic meter, with glass observation door

Electrical load: continuous adjustable 0 ~ 6000 v + 5% 60 ma after last 2 s, relay action, to cut off the current, the buzzer alarm indication product is unqualified, then cancel the alarm according to the voltage can be stopped.

The thickness of the upper and lower electrodes; 0.5mm, a

The spacing between the upper and lower electrodes: 50 plus or minus 0.5mm.

The dropping time interval is 0 ~ 99.99S continuously adjustable;

The dropping device: 0.075 ~ 0.9ml/min. The test time can be preset.

The thickness of the filter paper: 0.15 ~ 0.17mm

The product features the shell of the test instrument and all the electrodes, the fastening device and the assembly parts connected with the electrode, such as screws, washers and nuts, all of which are made of stainless steel.

Power supply: AC 220V / 50Hz
