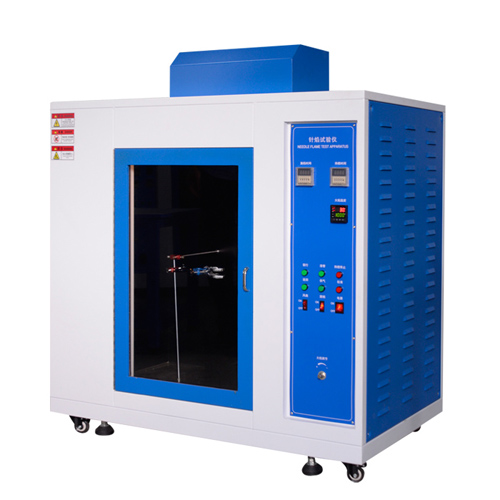

Lonroy LR-K003 PLC针式火焰测试仪 (100 ℃ to 700 ℃)

1) contents of the box: 0.5 cubic meter, with glass observation door

2) fuel: butane gas

3) burner specification: more than 35 mm long, inner Ø + / – 0.1 mm, 0.5 mm outside diameter less than 0.9 mm Ø

4) flame height: 12mm + 1mm can be adjusted

5) flame temperature: 100 ℃ to 700 ℃ within 23.5 + / – 1 S

6) timer: adjustable in the range of 0 ~ 99 minutes and 99 seconds, the burning time can be set, and the burning duration can be recorded

7) product features: the combustion box and main mechanical parts of this test instrument are stainless steel, beautiful appearance, smoke resistance and air corrosion.The time figures show that the jig can be adjusted in three dimensions, the control system is automated and the independent sniffle, and the observation record is convenient and reliable.With temperature measuring device.

8) power supply: AC220V / 50Hz
