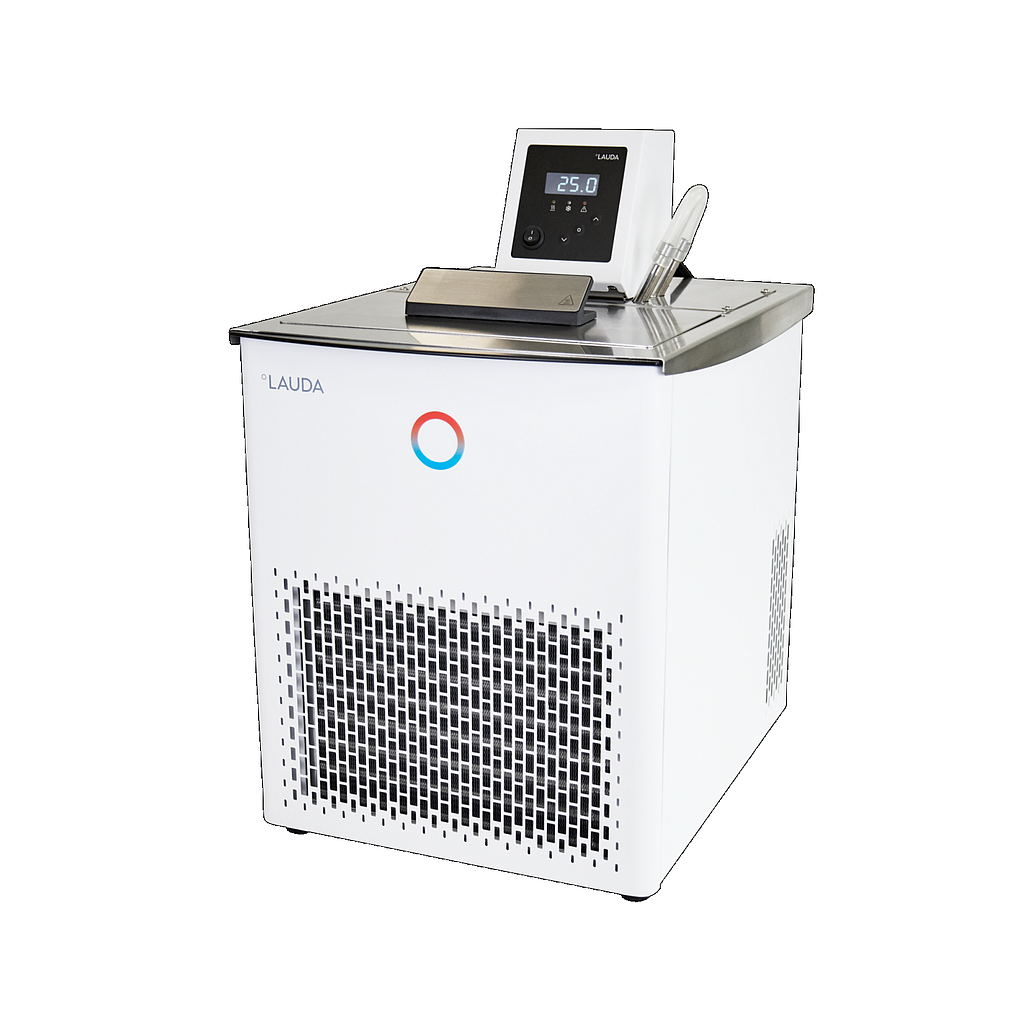

Lauda RA12 冷却恒温器 ( -20 ~ 100°C, 14.5 L)

Working temperature range : -25 - 100 °C

Ambient temperature range : 5- 40 °C

Temperature stability : 0.05 ± K

Heater power max. : 1.5 kW

Power consumption max. : 1.8 kW

Current max. : 8 A

Pump Pressure max. : 0.2 bar

Pump flow rate pressure max. : 15 L/min

Bath volume min. / max. : 9.5 / 14.5 L

Size of bath (W x D x H)  : 300 x 203 x 160 mm

Overall dimensions (WxDxH)  : 365 x 500 x 605 mm

Weight : 37 kg

Refrigerant stage 1 : R-134a (GWP 1430); 0.130 kg; 0.2 t CO2-eq

Power supply : 220 V; 60 Hz / 230 V; 50 Hz

Power plug : Power cord with angled plug (CEE7/7)

Temperature: 20°C;  Heat transfer liquid: Ethanol; Cooling Capacity 50 Hz: 0.325 kW

Temperature: 0°C;  Heat transfer liquid: Ethanol; Cooling Capacity 50 Hz: 0.26 kW

Temperature: -20°C;  Heat transfer liquid: Ethanol; Cooling Capacity 50 Hz: 0.08kW
