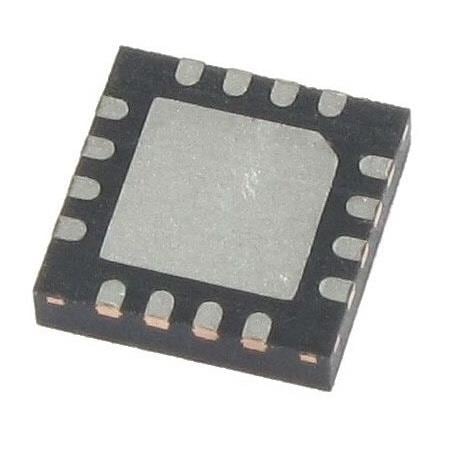

Intersil ISL84467IRTZ Analog Switch ICs QDDL DPDT 0 4OHM S SWITCH 16LD TQFN3X3
制造商: Intersil Model: ISL84467IRTZ - 联系
Width: 3 mm
Height: 0.8 mm
Length: 3 mm
Supply Type: Single Supply
Unit Weight: 24 mg
Configuration: 4 x SPDT
On Time - Max: 34 ns
Mounting Style: SMD/SMT
Off Time - Max: 18 ns
Moisture Sensitive: Yes
Number of Channels: 4 Channel
On Resistance - Max: 750 mOhms
Supply Current - Max: 150 nA
Supply Voltage - Max: 4.5 V
Supply Voltage - Min: 1.65 V
Switch Continuous Current: 300 mA
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
