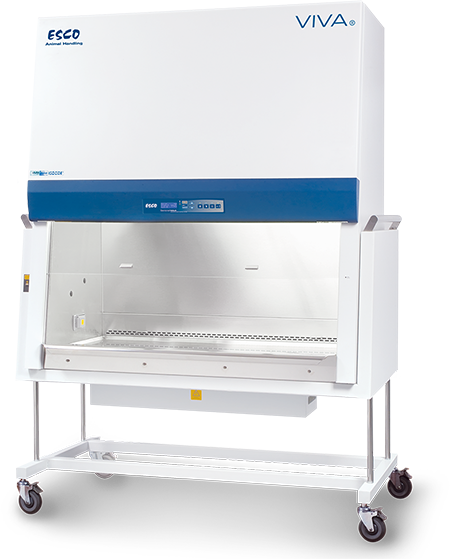

ESCO VA2-6A1-E 通用动物工作站 (220-240V, AC, 50/60 Hz)

Nominal Size: 1.8 meter (6')

External Dimensions (W x D x H): 2030 x 815 x 1510 mm (79.9" x 32.1" x 59.4")

Maximum External Dimensions with Support Stand (W x D x H): 2193 x 852 x 2235 mm (86.3" x 33.5" x 88.0")

Internal Work Area (W x D x H): 1870 x 620 x 680 mm (73.6" x 24.4" x 26.7")

Average Airflow Velocity: Inflow: 0.45 m/s (90 fpm), Downflow: 0.35 m/s (70 fpm)

Airflow Volume: Inflow: 921 m³ / h (542 cfm), Downflow: 1414 m³ / h (832 cfm), Exhaust: 921 m³ / h (542 cfm)

ULPA Filter Typical Efficiency: >99.999% for particle size between 0.1 to 0.3 microns per IEST-RP-CC001.3

Sound Emission*: NSF / ANSI 49: 64 dBA, EN 12469: 61 dBA

Fluorescent Lamp Intensity: > 1230 lux (> 114 foot candles)

Cabinet Construction: 1.5 mm (16 gauge) electrogalvanized steel with Isocide white oven-baked epoxy power coating

Net Weight Cabinet including stand: 528 Kg (1164 lbs)

Electrical*: 220-240VAC, 50/60 Hz, 1Ph, 6 amps

*Noise as measured in an open field/ anechoic chamber

Universal animal workstations employ two independently balanced ULPA filtration modules to protect animals inside the enclosure from exposure to airborne particulates/ambient contamination, as well as, the operator from exposure to allergens and other potentially hazardous materials. It has an ergonomically sloped front design and integrated carbon filters to remove emitted odors which provides operator protection during operations.
