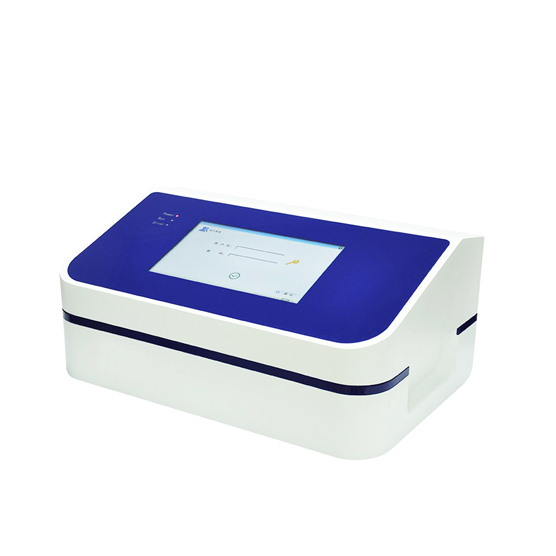

Bonnin BNT-V8.0 自动过滤器完整性测试仪 (BP:100-8000mbar; DF:1-900ml/min; WI:0.01-100ml/min)

Power Supply: 100–240 VAC, 50HZ, 120W

Operation Pressure: 100-10000 mbar (150psi)

Unit: Mbar ,kpa, psi, kgf/cm2

Operation Condition: Ambient Temperature:+5℃ ~ +40℃;Relative Humidity:10-80%

Dimension(mm): 480(Depth) ×300 (Width) × 210(Height1)

Function: Manual Bubble point Test;Basic Bubble Point Test;Extensive Bubble Point Test; Pressure Holding Test;Diffusion FLow Test;Water Immersion Test;Ultrafitration Membrane Test

Test Accuracy: Upstream Volume Test:± 4%;Bubble Point Test:± 50mbar ; Diffusion Flow Test:± 4% ;Water Immersion:± 0.01ml

Test Scope: BP:100-8000mbar   DF:1-900ml/min     WI:0.01-100ml/min

Applied Range: Symmetric and asymmetric membrane test, needle filters, capsule filters, flat filters, cartridge filters (within 12 cores and 20 inches), ultrafiltration membrane packages, ultrafiltration columns, various irregular filters

Audit Trial: Audit trail records can exportable and ireeversible

Authority Management: User Name and Password to Login ,4 Authority Grades,meeting the FDA 21CFR PART 11requirements

Reservation Solution(programs): 1000sets

Audit trail record storage: ≥5 years storage

Anti-backflow(liquid) device: Customization

Number of users: 1000sets

Operating System: Linux system

Operation Interface: Chinese and English bilingual operation interface

Dust and splash level: IP54 , Front is IP65

Print Function: Built-in printer,can control on PC;choose subject

Historical Record: 300000 sets records storage

Records Copy: Support USB disk to export (include test curve);

Display Screen: High definition 10 inch ,color touch screen;

Serial Connection: RS232/USB/Support wireless connection;

Language: Chinese/English

Work Mode: Online/Offline

Applicable Environment: Above D level

Weight:  10KG
