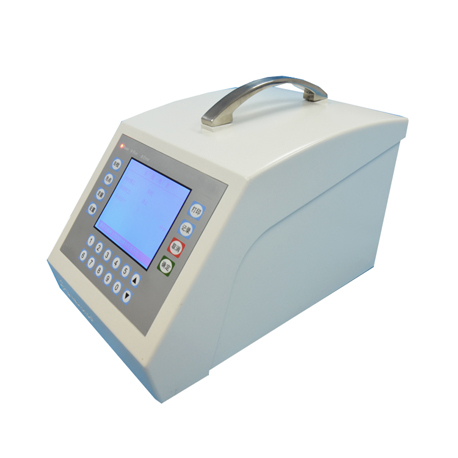

Bonnin BNT-V4.0 自动过滤器完整性测试仪

Power requirements: 170-240V AC, 50/60Hz;110W

Maximum operating pressure: 9999 mbar

Minimum intake air pressure: 3000 mbar

Overall dimensions: 240(W) x 380(D) x 280(H)

Test Range: maximum test pressure: 500-6900mbar

Test Accuracy: Net volume test: ± 4%; bubble point: ± 50mbar; diffusion flow: ± 4%; water immersion: ± 0.1ml / min

Operating conditions: Ambient temperature: + 5 ℃ ~ + 35 ℃; Relative humidity: 10-80%; Net volume test: 5 min ± 2min; diffusion flow test: 8 min ± 2min;

Test Processed: Simple bubble point test: 10 min ± 2min; enhanced bubble point test: 20 min ± 2min; Water immersion test: the setting of test time + 5min ± 2min;

Printing function: Wide line printing, output test parameters, test results, automatic print function

Test recording function: 500 groups of test results (including test curve), can be increased to 1000 set of test results according to user needs

Display screen: 5.7″ TFT;monochrome

Serial port connection mode: RS232;

Language: English
