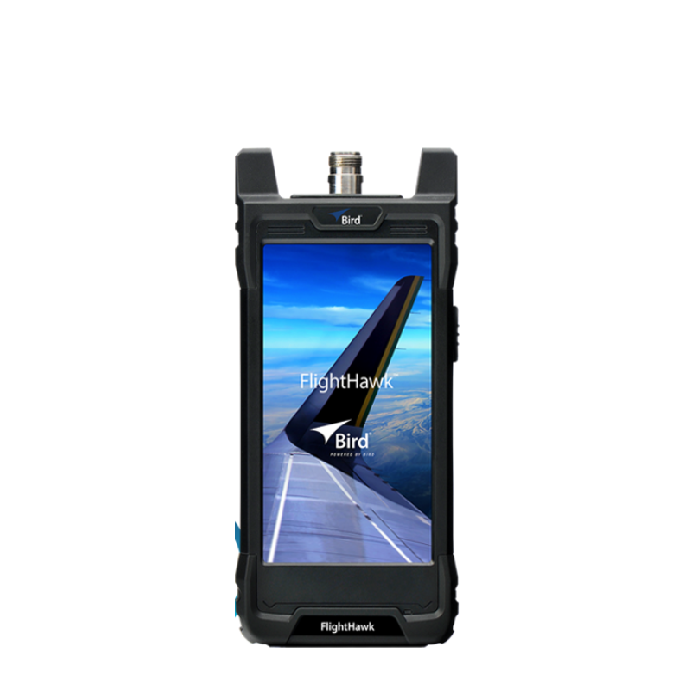

Bird FH-AV-BASIC 射频电缆和天线分析仪套件 (1~6000 MHz)

Frequency:

    Range: 1~6000 MHz

    Resolution: 1kHz

    Accuracy: ±2.5 ppm @25 °C

Output Power: -10 dBm, typical

Measurement: Speed: 1 ms / data point; Points: 51 to 3201

Measure Bandwidth: 100 Hz to 30 kHz

Temperature Stability: 0.01 dB/°F (0.02 dB/°C)

Return Loss Measurement Range: 0 dB to -60 dB

Resolution: 0.01 dB

VSWR Measurement Range: 1.0 to 65.0

Cable Loss Measurement Range: 0 dB to 30 dB

DTF Range: 0 to 5000 ft. (0 to 1500 m)

Maximum Input Voltage: 50V

Connectors: USB Type-C, USB 3.0

Test Port Connector: N-type, Female 50 Ohms

Temperature Operating: 14 to 131 °F (–10 to +55 °C)

Temperature Storage: -40 to 176 °F (-40 to +80 °C)

Display: 5.5 in, 720 p

Languages: English, Chinese, Spanish

Battery Type: Lithium-ion rechargeable

Operating Time: 10 hours typical

Charging Time: 5 hours typical

Dimensions: 7.7 in x 3.6 in x 2.4 in/ (195 mm x 90 mm x 60 mm)

Weight: 1.98 lbs. (0.9 (kg)
