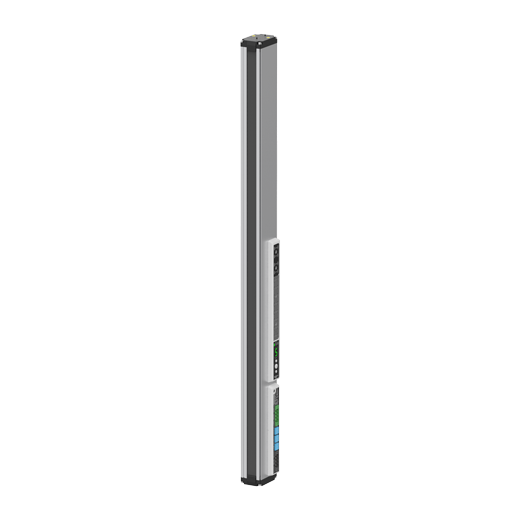

Autonics BWML Line-beam Mapping Sensors (95 mm ± 10 mm, ≤ 120 ms)

Sensing method: Diffuse reflective type

Beam pattern: Line-beam type

Light source: Infrared LED (850 nm modulated light)

Sensing distance: 95 mm ± 10 mm

Sensing target: Transparent or opaque glass plate

CH ordering orientation: Forward (bottom = 1 CH) / Backward (top = 1 CH) (parameter setting)

Sensing CH:; 4 to 62 CH

Sensing target: pitch  20 mm to ordered specification

Response time: ≤ 120 ms

Operation mode:  Light ON / Dark ON (parameter setting)

Function Background: sensing mode, installation guide mode, sensing level setting, output option, self-diagnosis

Indicator: Output indicator (red), stability indicator (green), status indicator (green, yellow, red)

Weight (packaged): ≈3.64 kg (≈ 4.8 kg) (based on BWML82-20CLL, BWML82-20ECL
