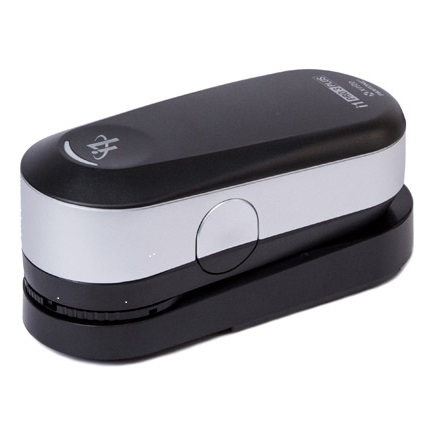

Xrite i1Basic Pro 3 Plus 색상 보정 및 성형 장치 (380 - 730 nm, 12 mm (0.47”))

Aperture: Measurement aperture: 8 mm (0.31”) diameter (effective measurement aperture during scanning is depending on the patch size and measurement speed)

Available Disk Space: 2GB

Calibration: Manual on external ceramic white reference (included)

Communication Interface: USB 1.1

Connectivity: Powered USB port

Dimensions (length, width, height): i1Pro device: 162 mm x 69 mm x 64 mm (6.4” x 2.7” x 2.5”)

Display Resolution: 1024x768 pixels or higher

Humidity: 30 to 85% RH (non-condensing)

Illumination Spot Size: 12 mm (0.47”)

Inter-Instrument Agreement: 0.3 ∆E00* average, 0.8 ∆E00* max. (deviation from X-Rite manufacturing standard at a temperature of 23ºC (73.4ºF) on 12 BCRA tiles (D50, 2º))

Internet Connection:  Required for software install, download and automatic update

Languages Supported: Chinese (Simplified), English, French, German, Italian, Japanese, Korean, Portuguese, Spanish

Light Source: i1Pro3 Plus LED Illumination (including UV)

Macintosh: MacOS X 10.11x, 10.12x or 10.13x (with latest upgrades installed)

Measurement Conditions:

• M0 - UV included - ISO 13655:2017

• M1 - D50 - ISO 13655:2017

• M2 - UV excluded Filter - ISO 13655:2017

• M3 - Polarization - ISO 13655:2017

Measurement Frequency in Scanning Mode: 400 measurements per second

Measurement Geometry: 45°:0° ring illumination optics, ISO 13655:2017

Measurement Spot: 8mm (0.315")

Media Thickness: 1mm or less

Memory: 2GB Minimum

Number of Displays Supported per Workstation: Up to 4

Operating Temperature Range: 10°C to 35°C/50°F to 95°F

Patch Size: Minimal Patch Size in Scanning Mode: 16 x 16 mm (0.63” x 0.63”) (Width x Height) with sensor ruler 20 x 16 mm (0.79” x 0.63”) (Width x Height) without sensor ruler

Photometric Range: 10nm; Sampling interval 3.5nm

Processor: MAC: Intel® Core 2 Duo CPU or better; WINDOWS: Intel® Core 2 Duo or AMD Athlon™ XP or better

Scan Length: Maximum 515mm (20.28")

Security: User must have Administrator rights to install and uninstall the application

Short Term Repeatability - White: 0.05 ∆E00  on white (D50,2°, mean of 10 measurements every 3 seconds on white)5

Spectral Analyzer: i1® technology with built-in wavelengths check; Holographic diffraction grating with 128-pixel diode array

Spectral Range: 380 - 730 nm

Storage Temperature Range: -20° to 50°C/-4° to 122°F

Supported Profile Format: ICC version 2, version 4.3,  & iccMax

Weight: i1Pro device: 285 g (10.1 oz)

What's Included?:

- i1Pro 3 Plus spectrophotometer (measurement device), calibration plate, polarizing filter, ambient light measurement head, monitor holder, positioning target, XL scanning ruler, XL backer board, USB cable.  i1Profiler v3.x software for monitor profiling plus QA for monitors and printers, PANTONE Color Manager software.
