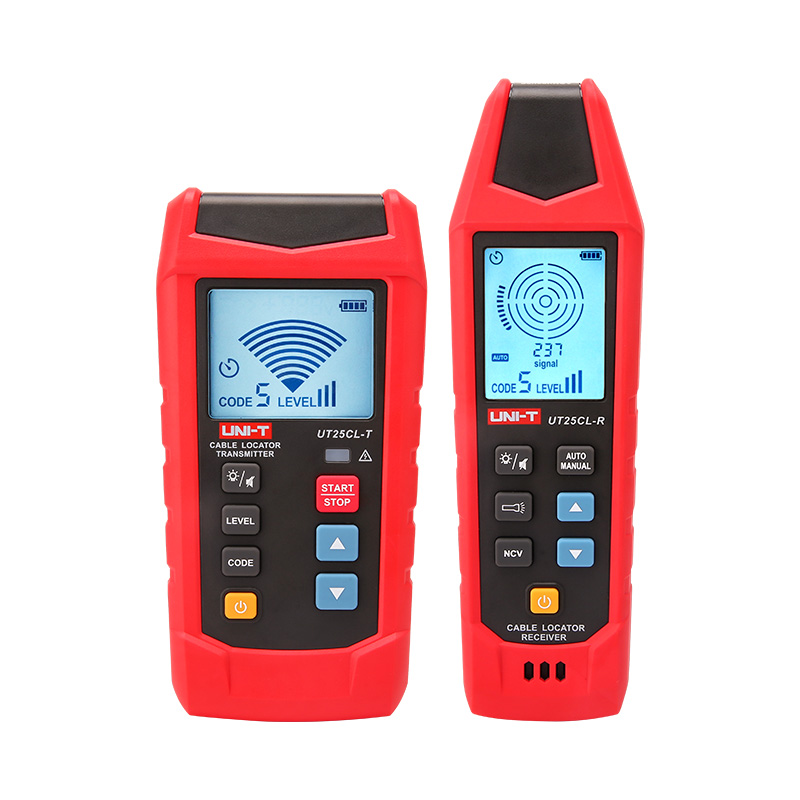

UNI-T UT25CL 케이블 로케이터 (33kHz, 8~480V)

Specifications:

1, Find conductors inside the wall, detect conductor interruptions or short circuits.

2, Trace the underground cable paths.

3, Locate fuses and devices associated with the fuses.

4, Identify short circuits and open circuits in the underfloor metal heating.

5, Trace metal water pipes and metal heating pipelines.

6, Adjustable sensitivity automatically/manually (Receiver: 3 levels; Transmitter: 9 levels)

Transmitter

Output signal: 33kHz

Energized wire voltage range : AC/DC 8~480V; AC: 50/60Hz/ 2.5% ±3deg

Screen: Segment code LCD (TN; Translucent )

Backlight: Yes

Code value: 0, 1, 2, 3, 4, 5, 6, 7

Signal strength: three level: 1, 2, 3

Unipolar test: √ (energized wire test, max voltage 480V)

Bipolar test: √ (energized wire test, max voltage 480V)

ELV LED indicator:

1. If the input voltage exceeds 25V, the ELV LED turns on.

2. As the voltage rises, the brightness of the ELV LED increases.

3. In any other case, the ELV LED will be dim or not illuminated.

Receiver:

Receiving frequency:  33KHz

Tracing depth:

Around 0~2.5m (unipolar mode; single-circuit: 2.5m)

Around 0~0.5m (bipolar mode)

NCV voltage range: 80V ~ 1000V, 50Hz/60Hz

Voltage detection depth: Around 0~0.4 m

Code value: 0, 1, 2, 3, 4, 5, 6, 7

Signal strength: three level: 1, 2, 3

Multi-Transmitors compatible: up to 8pcs

Screen: Segment code LCD (TN; Translucent )

Others:

Flash light: Yes

Backlight: Yes

Manual sensitivity adjustment: Yes

Over voltage category: CAT III 480V

Pollution rating: 2

IP rating: IP54
