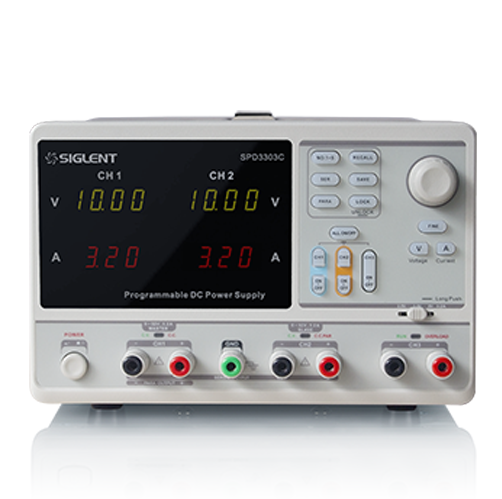

SIGLENT SPD3303C 프로그래밍 가능한 DC 전원 공급 장치 (32V/3.2 A×2, 2.5V/3.3V/5V 3.2Ax1)

Output:

- CH1 output current: 0~3.2A

- CH2 output voltage: 0~32V, output current: 0~3.2A

- CH3 output voltage: 2.5/3.3/5V, output current: 3.2A

Display:

- 32V full scale 4 digits

- 3.2A full scale 3 digits

- LED display

Resolution: 10mV/10mA

Program accuracy:

- Voltage ±(0.5% of reading+3digits)

- Current ±(0.5% of reading+3digits)

Readback accuracy:

- Voltage ±(0.5% of reading+3digits)

- Current ±(0.5% of reading+3digits)

Constant voltage mode

- Line Regulation: ≤0.01%+3mV

- Load Regulation: ≤0.01%+3mV

- Ripple&Noise: ≤1mVrms (5Hz~1MHz)

- Recovery time: <50μs (50% load change, minimum load 0.5A)

Constant current mode

- Line Regulation: ≤0.2%+3mA

- Load Regulation: ≤0.2%+3mA

- Ripple&Noise: ≤3mArms

CH3

- Output: (2.5/3.3/5V) ±8%

- Line Regulation: ≤0.01%+3mV

- Load Regulation: ≤0.01%+3mV

- Ripple&Noise: ≤1mVrms (5Hz~1MHz)

Max output power: 220W

Power source: AC 100V/120V/220V/230V ±10% 50/60Hz

Interface: USB Device

Size: 275×225×136mm

Weight: 7.5kg

Standard accessories

USB Cable: 1

Quick Start: 1

Calibration Certificate: 1

Power cord: 1
