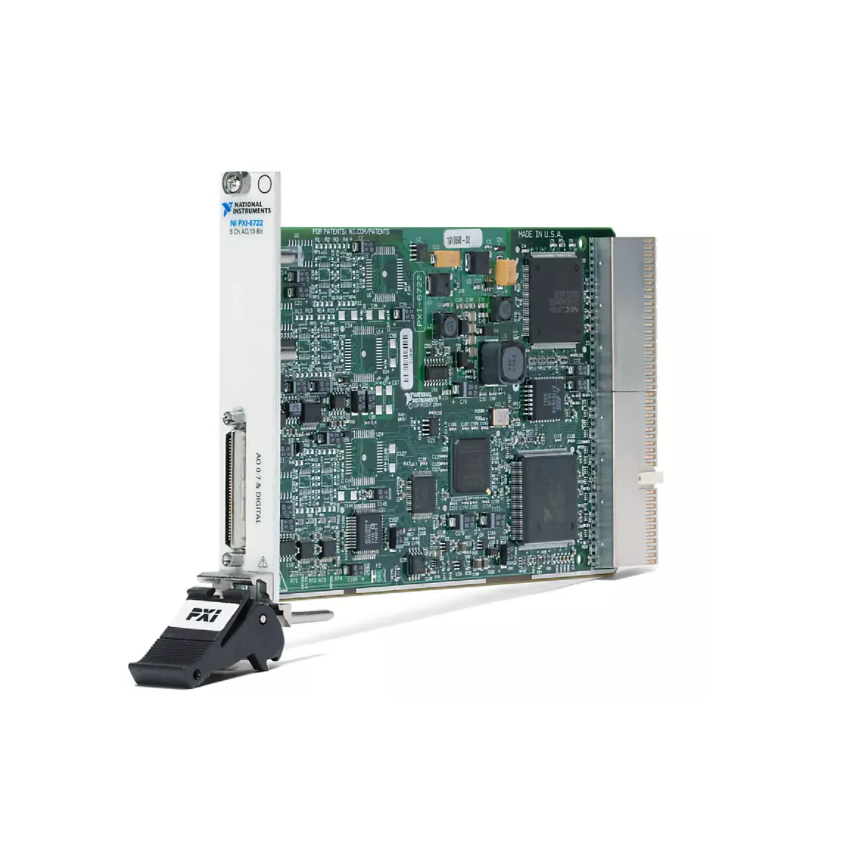

NI PXI-6722 PXI Analog Output Module (8CH, 800 kS/s, -10V~10V, 13 bits)
생산업체: NI Model: PXI-6722 P/N: 778999-01 - 연락처
Bus Connector: PXI Hybrid
Number of Analog Output Channels: 8
Maximum Update Rate: 800 kS/s
Analog Output Voltage Range: -10 V to 10 V
Analog Output Resolution: 13 bits
Output Current Range: —
Provides analog output signals for PXI systems.
The PXI Analog Output Module supports both static and software-timed voltage output applications. This module include 5 V TTL/CMOS digital I/O lines. Some models can deliver simultaneous, multichannel updates for control and waveform output applications, such as stimulus-response, power supply control, high-speed, deterministic control, and sensor/signal simulation. These advanced features help you use the PXI Analog Output Module to replace several kinds of instruments, including stand-alone proportional integral derivative (PID) controllers, low-speed arbitrary waveform generators, and function generators.The PXI Analog Output Module includes the NI-DAQmx driver and configuration utility that simplify configuration and measurements. NI-DAQmx supports NI programming environments as well as Python, ANSI C, C#.NET, and MathWorks MATLAB® software.
Datasheet
