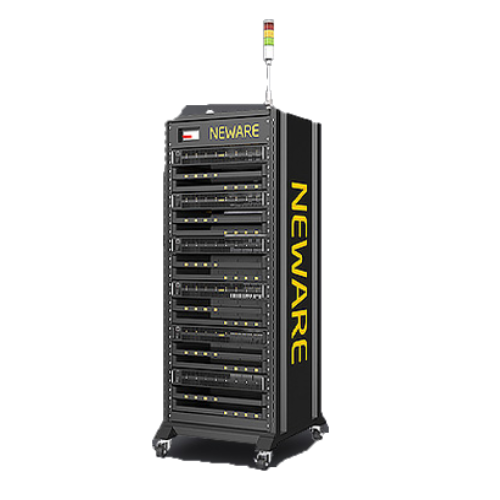

NEWARE CE-5008-24V15A-SMB 노트북 배터리 테스트 시스템 (24V, 15A)

Voltage:

- Output range/channel:

+ Charge：2.5V~24V

+ Discharge：2.5V~24V

- Accuracy: ± 0.02% of range

- Stability: 0.01%

Current

- Output range/channel:

+ Charge：30mA~10A

+ Discharge：30mA~10A

- Accuracy: ± 0.03% of range

- Stability: 0.015%

Power

- Output power/channel: 360W

- Stability: 0.05%

Time

- Current response time: Current from 10% to 90% or 90% to 10% Hardware response time<=20ms

- Working step time: ≤(365*24)h/step. Time format-00：00：00.000(h、m、s、ms)

Data Record

- Data record conditions

+ Time Δt： （0.01s~60000s）

+ Voltage ΔU：（5mV~20V）

+ Current ΔI： （5mA~10A）

- Frequency: 100Hz

Charge

- Charge modes: CC、CV、CCCV、CP、CPCV

- Cut-off condition: Voltage、Current、-△V、Capacity

Discharge

- Discharge modes: CC、CP、CCCV

- Cut-off condition: Voltage、Current、-△V、Capacity

Cycles

- Max cycles: 65535

- Max steps: 255

- Nest: 4
