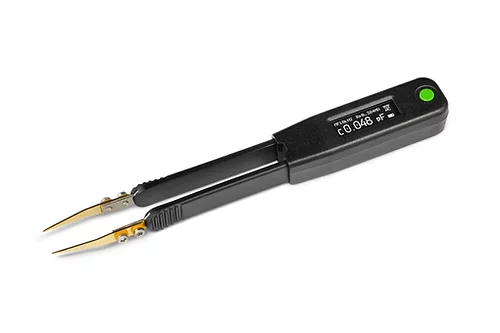

LCR Research LCR Elite2 LCR 미터 (10KHZ)

Basic Accuracy : R: 0.2%, L: 0.4%, C: 0.2%

Measurement Range (R) : 20mΩ to 10MΩ

Measurement Range (C) : 0.1pF to 5mF

Measurement Range (L) : 0.3uH to 1.0H

Test Frequency : 100Hz – 10kHz

Test Voltage : 0.5Vrms

Over Voltage Protection (between test tips) : Yes

Resistance (R) : Yes

Capacitance (C) : Yes

Inductance (L) : Yes

Impedance (Z) : No

Dissipation Factor (D) : Yes

Quality Factor (Q) : Yes

Phase Angle (Ө) : No

Equivalent Series Resistance (ESR) : Yes

Direct Current Resistance (DCR) : No

Diode Check : No

LED Testing : No

Continuity : No

Sorting : No

Recording : No

Self Calibration : Yes

PC Connectivity : No

Dimensions (L x W x H) : 151 x 19 x 14.5mm

Weight : 30g

Display : OLED 0.91″, 128 x 32 Resolution

Battery : 3.7V LiPO, 180mAH, Rechargeable

External Power Source : DC 5V, micro-B USB Connector

SMD Test Probe : Gold Plated (Regular)
