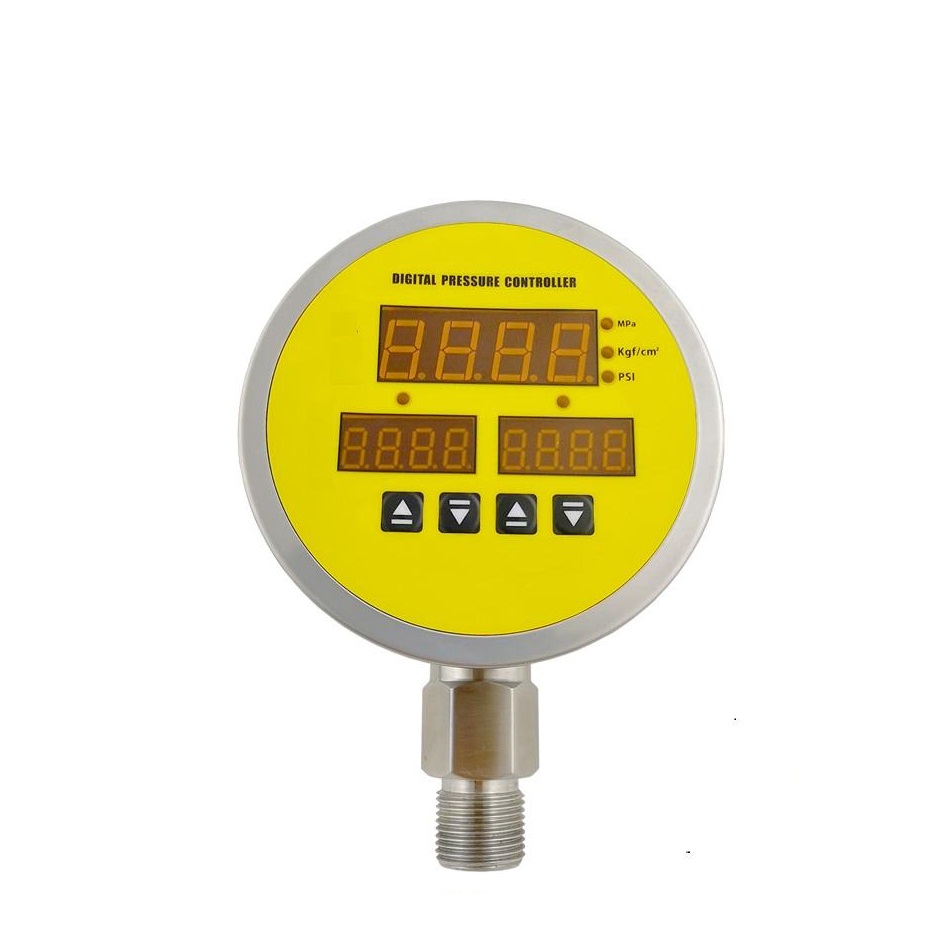

KDS KTS900 Digital Pressure Controller ((-0.1~160) MPa, 0.5%)

Pressure range: (-0.1~160) MPa

Micro pressure: (0~100) kPa

Overload capacity: 150% (> 10MPa) 200% (≤10MPa)

Output form: relay output, (high alarm low alarm public line) wiring method same as electrical contact pressure gauge

Output relay capacity: 24V 1A 220V 1A

Power supply: 220V AC; 24V DC; 380V AC optional

Setting range: control points can be set in the full range

Accuracy: 0.5% FS

Measurement medium: gas, water, oil

Operating temperature: -20~80 ℃

Case diameter: 100mm

Joint material: 304 stainless steel

Shell material: 304 stainless steel

Product certification: CE certification ROHS certification
