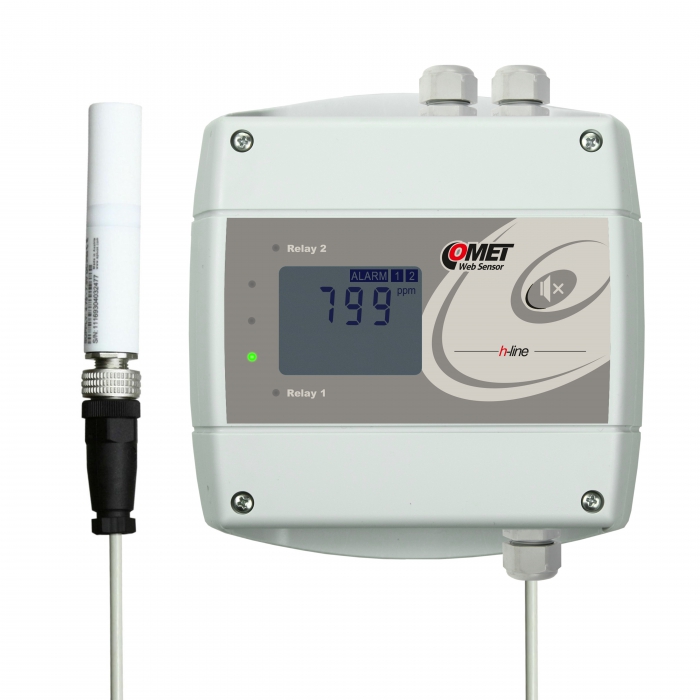

Comet H5521 Remote CO2 concentration (9-30Vdc, Ethernet)

Measured value: CO2

CO2 sensor:

   Measuring range: 0 to 2000 ppm

   Accuracy: ±(50ppm +2% from reading) at 25°C and 1013hPa

   Resolution: 1 ppm

Relay outputs:

   Quantity: 2

   Maximal voltage: 50 V

   Maximal current: 2 A

   Maximal power: 60 VA

Operating temperature: -30 to +60 °C

Channels: internal CO2 sensor

Acoustic alarm: from built-in beeper - switchable

Output: Ethernet

Measuring interval: 15 s

Communication protocol: WWW, ModbusTCP, SNMPv1, SOAP, XML

Alarm protocols: E-mail (SMTP authentication is supported), SNMP Trap, Syslog

Power: 9-30 Vdc

Protection class: IP30

Dimensions: 136 x 213 x 45 mm

Weight: approx. 360 g

Included in delivery:

   H5521

   Instruction Manual

   Traceable Calibration Certificate

   FREE software TSensor for Configuring of the Transmitter

   COMET Cloud for 3 Months
