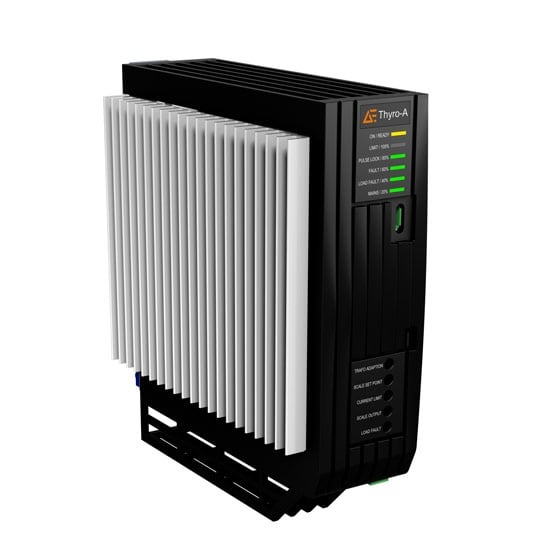

Advanced Energy Thyro-A 1A 400-30 HRL3 Digital Scr Power Controller (1Phase; 30A; 400V; 45 x 136 x 129mm)

Frequency (Hz): 47 to 63

Fuses: Integrated semiconductor fuse

Operating Mode: TAKT, VAR, QTM, and with optional BasicBusModule

Rated Currents (A): Up to 1500 A

Rated Voltages (V): Up to 500 V

Safety Certifications: CE, UL 508 (8 – 350A), Canadian C22.2 No. 14

Communications Interface: Micro-USB connector for Thyro-Tool Pro PC software connection; Basic Bus Module with Any bus Digital Interface Card

Approximate Weight (kg): 0.7

Product Size (mm): 45 x 136 x 129

Forced Ventilation: No

Power Loss (W): 47

Unit Rating (kVA): 12

Current (A): 30

Voltage (V): 400

Phase: 1

Control Types: Ueff / U2eff / Ieff / I2eff
