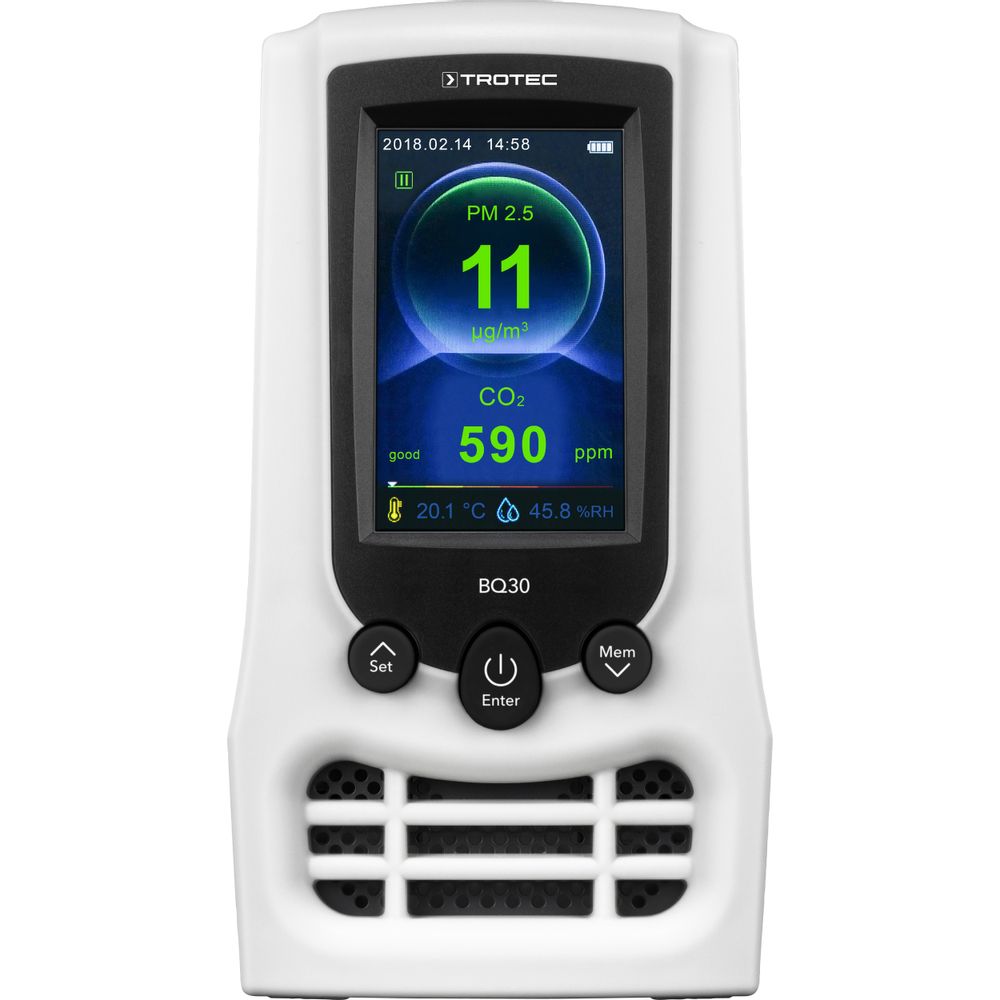

Trotec BQ30 CO2 Air Quality Monitor and Particle Measuring Device (CO2: 0 ~ 9999 ppm; PM2.5 / PM10)

Dimensions(length x width x height): 85 mm x 75 mm x 155 mm

Weight: 360 g

Interfaces: USB port for charger

Operating temperature: 0 °C to 50 °C

Storage temperature: -10 °C to 60 °C

Display: 3 inch TFT LCD,240 x 400 pixels

Data storage:  5,000 data records on internalmemory (ring memory)

Energy

Battery: Li-ion

Nominal voltage: 3.7 V

Capacity: 2400 mAh

Operating time: approx. 5 hours of continuous operation

Charging: 5 V / 1 A

Charging time: approx. 2 hours with the device switched off

Automatic switch-off: 10 to 120 min (in increments of 10 minutes)

Mass concentration of particles

Mass concentration channels (detectable particle sizes): PM2.5 / PM10 (2.5 μm / 10.0 μm)

Mass concentration measuring range: 0 to 2000 μg/m³

Mass concentration resolution: 1 μg/m³

Light source of the measuring cell: Laser class 1 (class 3R laser enclosed in a way to prevent tampering, 780 nm, 1.5-3 mW, classified according to DIN EN 60825-1 and the Technical Regulations of the Occupational Health and Safety; Ordinance on Artificial Optical Radiation (TROS))

CO2 concentration

CO2 concentration measuring range: 0 to 9999 ppm

CO2 concentration accuracy: ± 5 % / ± 75 ppm

CO2 concentration resolution: 1 ppm

Temperature measurement

Temperature measuring range: -20 °C to 70 °C (-4 °F to 158 °F)

Temperature accuracy: ± 2 °C

Temperature resolution: 0.1 °C

Humidity measurement

Humidity level measuring range: 0 % RH to 100 % RH

Humidity level accuracy:  ± 3.5 % RH at 20 % to 80 % RH; ± 5 % RH at 0 % to 20 % RH and 80 % to 100 % RH

Humidity level resolution: 0.1 % RH

Scope of delivery

• 1 x Particle measuring device BQ30

• 1 x USB connecting cable

• 1 x Li-ion battery

• 1 x Manual
