Terasic Altera Cyclone III FPGA Development Kit
Manufacturer: Terasic Model: Cyclone III FPGA - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636

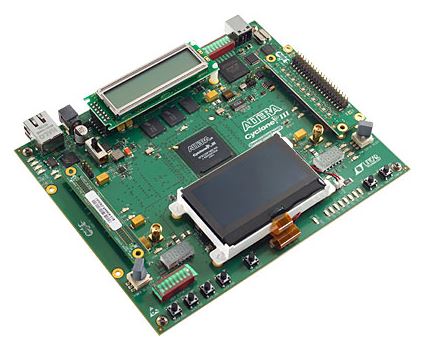

Cyclone III development board
Cyclone III EP3C120F780 FPGA
Embedded USB-Blaster™ circuitry (includes an Altera MAX® II CPLD) allowing download of FPGA configuration files via the flash device or the host computer
Memory
256 megabytes (MB) of dual-channel DDR2 SDRAM with error correction code (ECC)
8 MB of synchronous SRAM
64 MB of flash memory
Communication ports
10/100/1000 Ethernet
USB 2.0
Power and analog devices from Linear Technology
Switching power supply LTM4601
Switching and step-down regulators LT1931 , LT3481 , and LTC3418
Analog-to-digital converter LTC2402
LDO regulators LT1963 and LT1761
Clocking
50-MHz and 125-MHz on-board oscillators
SMA inputs/outputs
I/Os for the two HSMC connectors
Various buttons, switches, and indicators
Display
128 x 64 graphics LCD
2-line x 16-character LCD
Connectors
Two HSMCs
USB type B
Debug tools
Three HSMC debug cards (two loop-back and a debug header)
Cables and power/analog
14-V to 20-V DC input
On-board power measurement circuitry
19.8 W per HSMC interface
Power cord with plug adapters (U.S., UK, and EU)
Altera's Cyclone III FPGA Development Kit combines the largest density low-cost, low-power FPGA available with a robust set of memories and user interfaces. The kit dramatically reduces the design and verification portion of your project, whether it’s for automotive, consumer, wireless communications, video processing or another high-volume, cost-sensitive application.
The low-cost Cyclone III FPGA family—the industry’s first family of low-cost, 60-nm devices—offers an unprecedented combination of low power, high functionality, and low cost. Cyclone III devices are ideal to complement or replace ASSPs or ASICs.
If you are an experienced FPGA designer checking out the Cyclone III architecture, you'll love building systems leveraging the 50 percent (on average) faster performance Cyclone III FPGAs offer over the competition.
