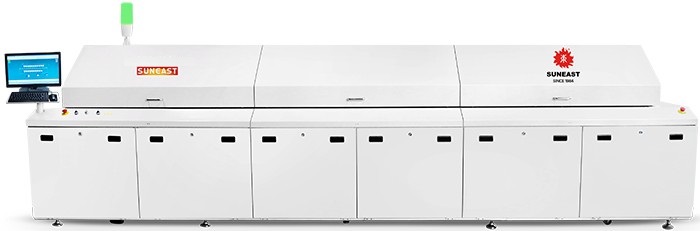

Suneast SER-708NH Nitrogen Reflow Oven with water cooling (Dual rail, 8 heating zones, 16 heating modules)
Manufacturer: Suneast Model: SER-708NH P/N: Dual rail - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
- Heating part:
Number Of Heating Zones: 8 heating zones, 16 heating modules
Length of heating zone: 2950mm
Cooling mode: Water cooling (Dual cooling zone) (Optional:three cooling zones)
The diameter of the inlet and outlet exhaust pipe: 2-Φ145, the exhaust air volume is required to be 15m³/min x2.
- Transmission system
PCB width: min 50mm - max 400mm
Transport direction: L-R or R-L
Transport height: 900±20mm
Fixed Track: Front Track Fixed(Option: Rear Track Fixed)
Transmission mode: Chain+Mesh Belt
Top/Bottom component clearance: Top 30mm and Bottom 20mm
Conveyor speed: 300mm-1500mm/min
- Control system:
Power Supply: AC3Φ，5W,380V,50/60HZ
Total power: 57KW
Startup power: 30KW
Normal operating power: 7.5KW
Operating temperature range: Room temperature to 320℃
Control mode: PC+PLC control system
Width adjustment mode of track: Electric+manual
Temperature control accuracy: ±1℃
PCB temperature deviation: ±1℃
Setting parameter storage: Various setting parameters can be stored.
Power failure protection: UPS delayed shutdown
Operating interface: Windows Chinese simplified, English online free switching
- Pecifications Parameters

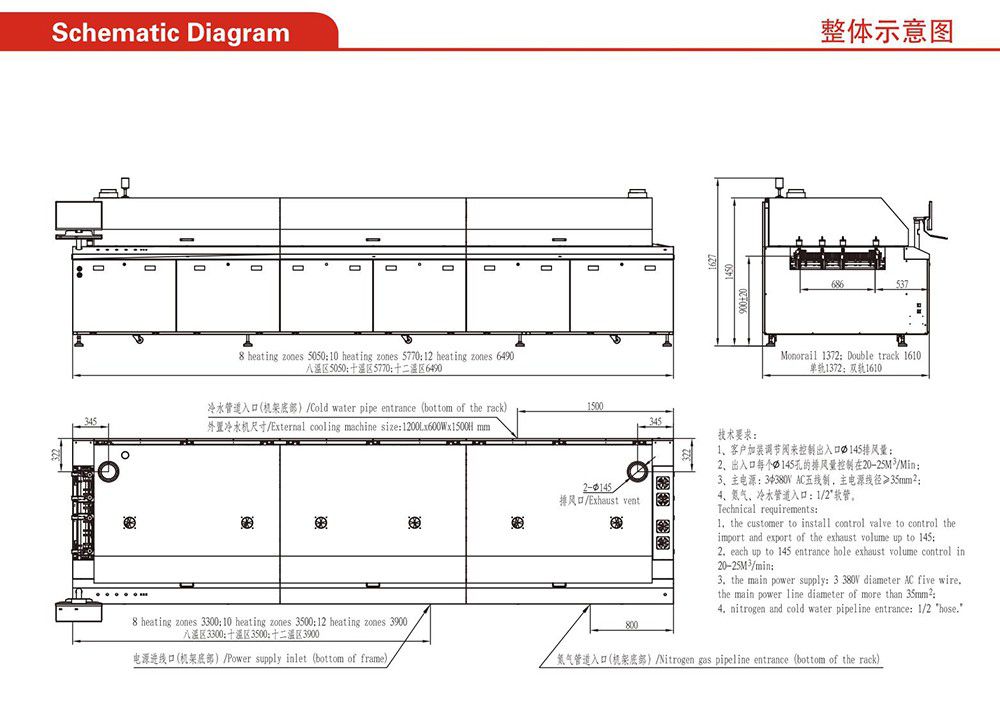

Dimension(L*W*H): Dual rail:5055*1658*1515mm
Weight: 2000-2200kg
Color Bright wrinkled white
