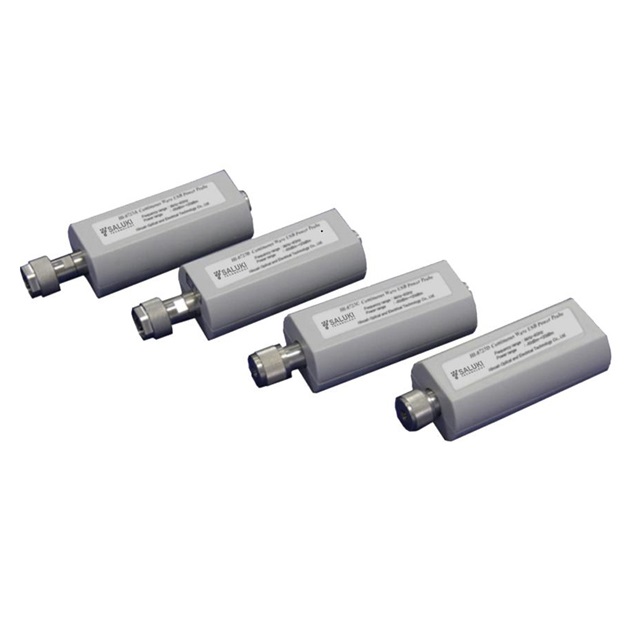

SALUKI S87230 USB CW Power Sensor (9 kHz ~ 6 GHz)
Manufacturer: SALUKI Model: S87230 Guarantee: 12 Month - Request a Quotation
- Request a Quotation
- Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Frequency Range: 9kHz to 6 GHz
Power Range: -50dBm to +20dBm
Zeroing Accuracy: ≤ 10nW
Input Port VSWR: 100kHz–6GHz: 1.15
Input Connector: Type-N (m)
Calibration Factor Uncertainly: ±0.16dB
Linearity Power:
+10dBm to +20dBm: ±0.18dB
-40dBm to +10dBm: ±0.14dB
-50dBm to -40dBm: ±0.79dB
Max. Input Power: +23dBm
Power Supply: Mini USB port
Power Consumption: ≤ 1.8W
Dimension: 46.2(W) × 35.6(H) × 142.6(D) mm
Weight: 235g
