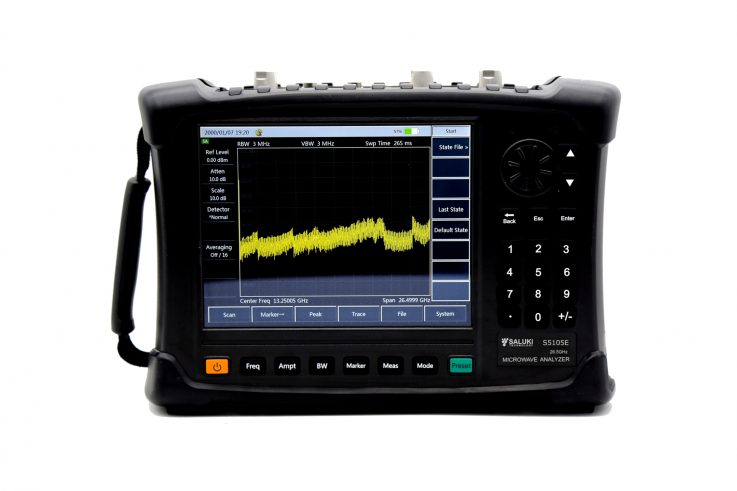

SALUKI S5105F Microwave Multifunctional Analyzer (100 kHz/50 MHz ~ 40 GHz, 2.4mm)

1. Vector Network Analysis

Frequency Range: 50 kHz to 40 GHz

Frequency Accuracy: ±1×10-6

Power Range: Big, small, manual

Effective Directivity: 28dB – 35dB

2. Spectrum Analysis

Frequency Range: 100 kHz to 40 GHz

Resolution Bandwidth: 1Hz – 5MHz (step by 1,3,10)

Video Bandwidth: 1Hz – 5MHz (step by 1,3,10)

Displayed Average Noise Level (Preamplifier On): -135dBm to -151dBm

Displayed Average Noise Level (Preamplifier Off): -113dBm to -135dBm

Max. Safety Input Level: +27dBm

Test Port: 2.4mm

Power Supply: Rechargable lithium-ion battery or power adapter

Operating Temp.: -10℃ to +50℃

Dimension: 315mm × 220mm × 102mm (excluding the handle and bracket)

Weight: 5.3kg (excluding battery)
