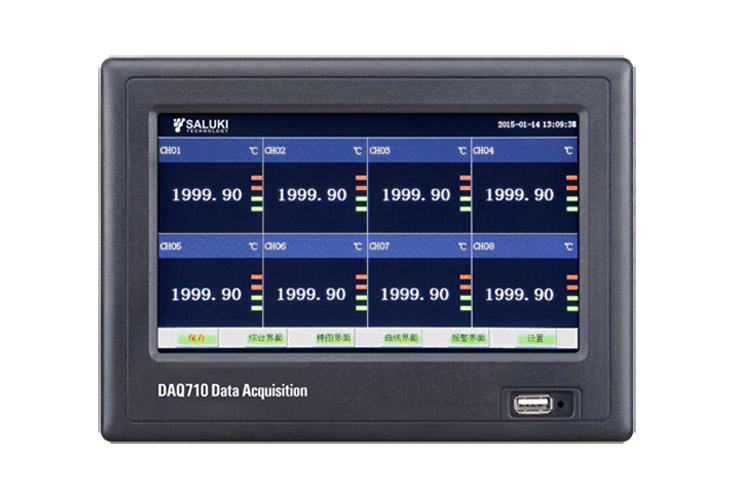

SALUKI DAQ710-8 Data Acquisition (7 inch, 70MB/2GB, 8 channels)

Input Signals

   Thermocouple: K, R, B, N, E, T, J, S, WRE5-26, WRE3-25

   Thermal resistance: pt1000, pt100, cu50

   Current (DC): 4-20mA, 0-10mA, 0-20mA

   Voltage (DC): 0-5V, 0-10V, 1-5V

Number of Channels: 8

Power Consumption: ≤ 25 VA

Storage Interval: Self-setting from 1s to 19999s

Internal Memory: 70MB or optional 2GB

Acquisition Mode: Cyclic

Alarm: Upper & Uppermost & Lower & Lowermost limit, 4 alarms per channel

Relay: 8-channel NO relay 220VAC/3A

Power Supply: 24VDC ±10%

Distribution Output: 1-channel 24VDC (optional multi-channel 24V or 5VDC output)

Communication: Standard RS232C (optional Ethernet, RS485, GPRS wireless)

               Standard Modbus RTU protocol

Temperature: Operating: -20°C to +70°C

Humidity: Operating: 0 – 95% RH

Dimension: 198 × 141 × 202 mm
