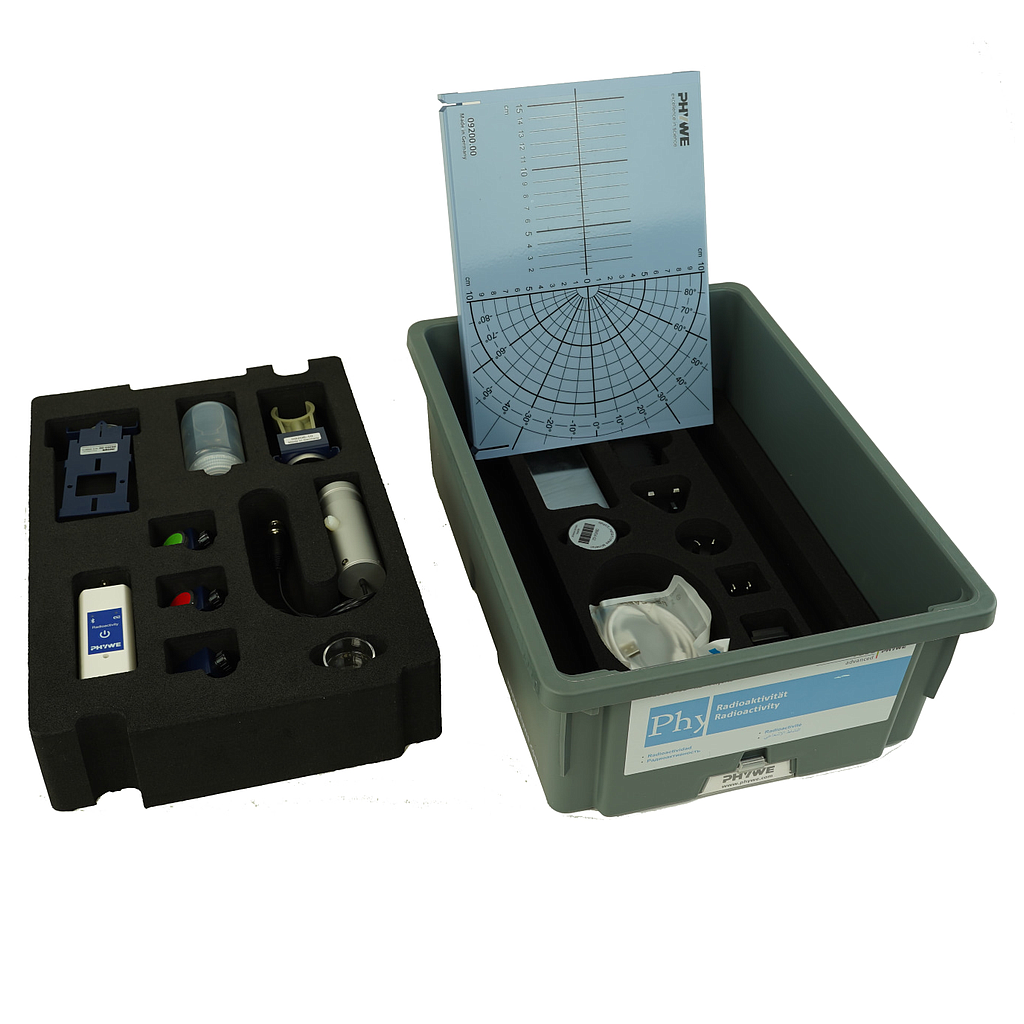

PHYWE 25261-88 TESS Advanced Physics Set Radioactivity (grades 7-10)

- Function and Applications:

Equipmentic set allowing the performance of 11 experiments about the following topics:

• Examination of naturally occurring radioactive substances (5 Experiments)

• Types of radiation and their characteristics (6 Experiments)

- Benefits:

• Complete equipment set: simple execution of the experiments

• The equipment is stored in a rugged, stackable and compact box, allowing quick control of completeness (foam insert)

• Matched with international curriculum: all topics are covered

• Experiments on the fundamentals of radioactivity using only common available natural radioactive sources

• Special radioactive emitter only required for 4 advanced experiments

• Counter tube is an integral part of the set

• Measurements are made with the kit contained Cobra SMARTsense and directly transfered to smartphone, tablet computer or PC.

- Equipment and Technical Data:

• The equipment set consists of all necessary components to perform the basic experiments using a Bluetooth capable device (not included) like smartphone, tablet computer or PC

• Robust, stackable storage box with a foam insert fitting to the contained equipment

- Scope of delivery:

• Base plate for radioactivity: 09200-00, 1

• Holder for SMARTsense counter tube on holding magnet: 09207-00, 1

• Plate holder on fixing magnet: 09203-00, 1

• Defl.magnets f. plate holder,2pcs: 09203-02, 1

• Absorption material f.student exp: 09014-03, 1

• Bottle,wide neck,plastic,250ml | Volume: 100 ml: 33913-00, 1

• Spoon, special steel: 33398-00, 1

• TESS box, plastics, high, 305 x 425 x 150 mm: 15200-00, 1

• Lid for TESS box, plastic: 15205-00, 1

• Apatite, natural mineral: 08464-02, 1

• USB-C cable for Cobra SMARTsense: 07935-00, 1

• USB charger for Cobra SMARTsense and Cobra4: 07938-99, 1

• Cobra SMARTsense - Radioactivity (only Sensor) (Bluetooth + USB): 12937-11, 1

• Cristallizing dish, boro, 11 ml: 46241-01, 1

• Geiger-Müller Tube for SMARTsense Radioactivity: 12937-20, 1

- Necessary accessories:

• TESS advanced Radioactivity RE consumables for 10 groups 13469-88

- Recommended accessories:

• TESS advanced physics Radioactivity, optional accessories for 1 group 13490-88

• Columbite, natural mineral 08464-01

• Radioactive source Ra-226, max. 4 kBq 09041-00
