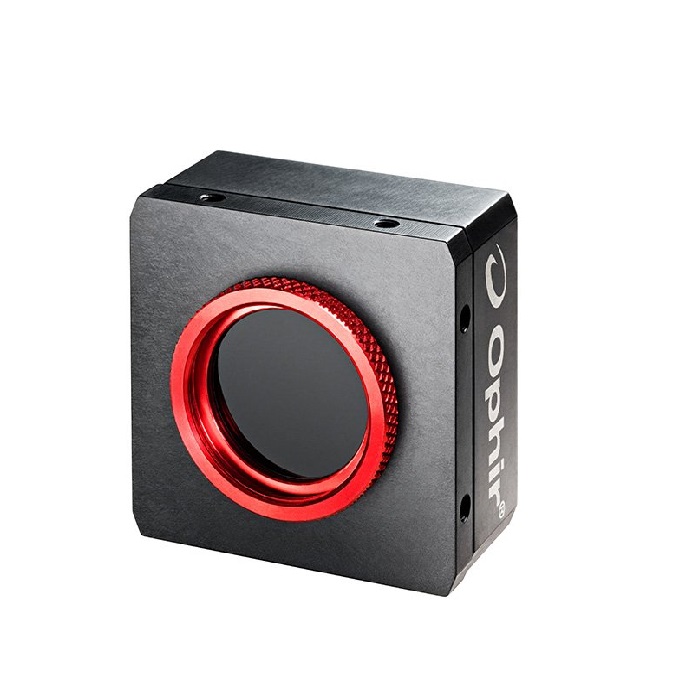

Ophir SP932U Beam Profiling Camera (190-1100nm)
Manufacturer: Ophir Model: SP932U P/N: SP90607 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Wavelengths: 190-1100nm
Beam Sizes: 34.5μm 5.3mm
Interface: USB 3.0
Sensor Type: Silicon CMOS
Compatible Light Sources: CW, Pulsed
Active Area: 7.06mm x 5.3mm
Number of effective pixels: 2048 x 1536
Effective Pixel Pitch: 3.45μm x 3.45μm
Damage threshold: 50W/cm2/ 1J/cm for < 100ns pulse width
Dynamic Range: 72 dB
Frame Rate at Full Resolution: 24fps
Dimensions: 45 mm x 45 mm x 22.5 mm
Compliance: CE, UKCA, China RoHS
BeamGage Professional: BGP-USB3-SP932U
