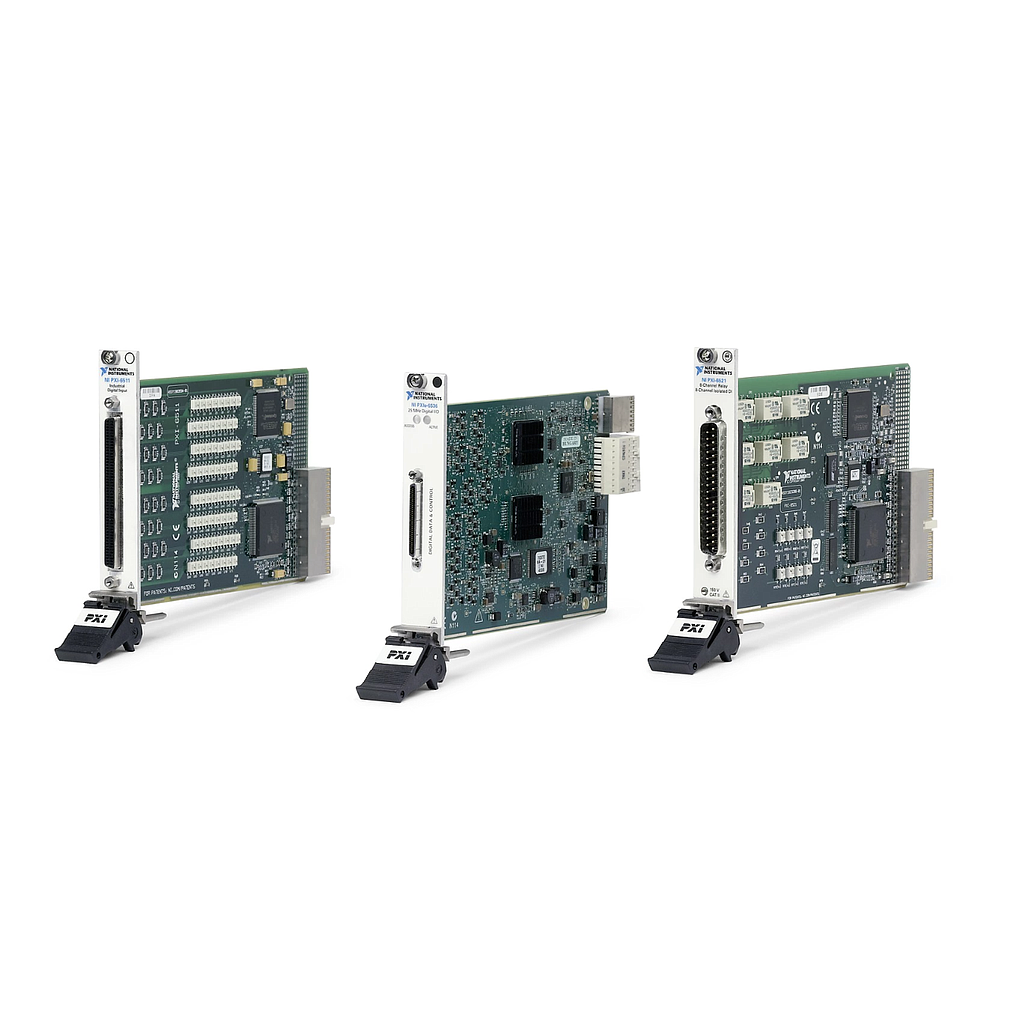

NI PXIe-6535 PXI Digital I/O Module (-1 V ~ 6 V)
Manufacturer: NI Model: PXIe-6535 P/N: 780695-01 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Digital I/O Logic Levels: 2.5 V 3.3 V
Bus Connector: PXIe
Single-Ended Digital I/O Channel Current Drive: —
Number of Bidirectional Digital Channels: 32
Signaling Type: Single-Ended
Number of Digital Input Only Channels: —
Digital Input Voltage Range: -1 V to 6 V
Number of Digital Output Only Channels: —
Output Voltage Range: 0 V to 5 V
Maximum Clock Rate: 10 MHz
Provides digital input and output capabilities for PXI systems.
The PXI Digital I/O Module supports up to 96 channels of digital I/O, with compatibility for a variety of voltage and isolation levels. Some models include programmable input filters to eliminate glitches/spikes and provide debouncing for digital switches/relays through a software-selectable digital filter. You can use the module in application such as manufacturing tests, industrial control, advanced aerospace, laboratory research, and more. The PXI Digital I/O Module includes the NI-DAQmx driver and configuration utility that simplify configuration and measurements. NI-DAQmx supports NI programming environments as well as Python, ANSI C, C#.NET, and MathWorks MATLAB® software.
