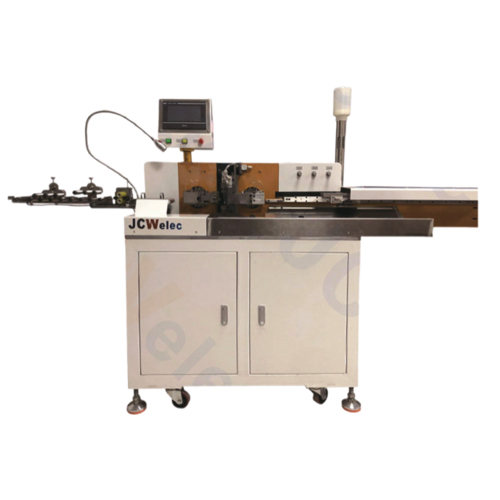

JCW JCW-CST13 Automatic 8 Wires Stripping To Soldering Machine (AWG 32-AWG 16, 8-850 mm)
Manufacturer: JCW Model: JCW-CST13 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Function: Single/dual end stripping, Full stripping, Partial stripping, Middle stripping, Double sides fluxing & tinning, Cut depth, Pull-off length.
Wire range: AWG 32-AWG 16
Cutting length (L): 8-850 mm [1200-1500-1800mm on request]
Cutting length tolerance: 0.002 x L
Stripping length: 0.1-11.5 mm
Twisting length: 0.5-10.5 mm
Tinning length: 0.5-10.5 mm
Production rate: 6600 pcs/h by 100mm cutting length
Air supply: 0.5-0.8 MPa [ Clean and dry air]
Power supply: AC 110V-220V ± 10%, 50/60 Hz
Dimensions: L 1720 x W 750 x H 1400 mm
Rated power: 2500 W
Weight: 380KG
Detector: Wire run-out, Wire knot, Wire stripping, Air pressure, Heating
