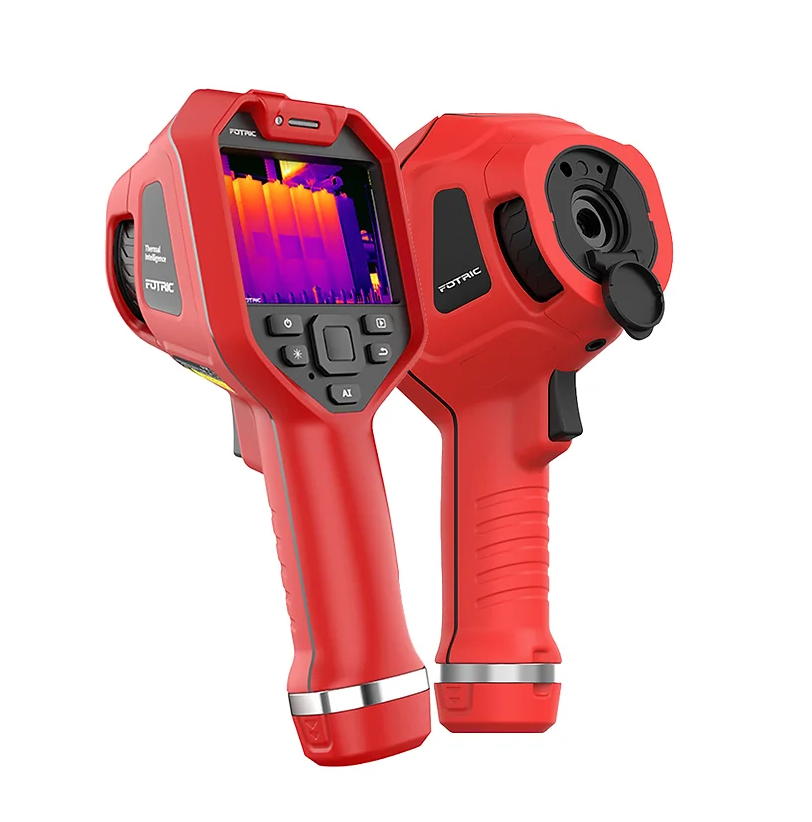

FOTRIC 322M Professional Compact Thermal Camera (160*120; 60mk (0.06°C); -20°C ~ 120°C, 0 °C ~ 550°C)

Thermal Resolution: 160*120

Super Resolution(SR): 320*240

Thermal Sensitivity(NETD): 60mk(0.06°C)

Lens Options(Not interchangeable):

49°x 36.8°, IFOV: 5.15 mrad, Focal length: f/3.3, Minimum Focus Distance: 0.1m

25°x 19°, IFOV: 2.73 mrad, Focal length: f/7.5, Minimum Focus Distance: 0.1m

Focus Mode: Manual focus, and 0.5 meters focus free (available for 49° and 46.5° lens)

Frame Rate: 30Hz

Temperature Analysis

Temperature Range: -20°C ~ 120°C,0°C ~ 550°C (-4°F~248°F, 32°F~1022°F)

Measurement Tools: Spot: 6; Line: 1; Rectangle/Circle: 4

Measurement Accuracy: ±2 °C or 2% , whichever is greater (at 25 °C ambient temperature

Image Display

Display Screen: 3.5 inch Touch Screen

Image Mode: Thermal, Visible light, Picture in Picture & Image Fusion

Palettes: 8, Grey, Iron, Rainbow, Grey-red, Rain, GlowBow, Medical, Prism

Minimum Temperature Span: Auto:3°C , Manual:2°C

Storage & Analysis

Storage Card: TF card, 64GB

File Format: Radiometric thermal photo(JPEG.), visible light photo, radiometric thermal video(IRS.) and MP4 video

Voice Annotation: Support, record up to 120 seconds; via Mic or Bluetooth headset

Tags: Support, Manual input and QR-code scan

Power System

Battery: 3.6V, 5000mAh Li-battery

Battery operation time: ≥5 hours

Battery charging time: 3.5 hours to full-charge by battery dock. 3 hours to full-charge by connectting to camera.

General Specifications

Spectral range: 7-14μm

Detector Pitch: 17μm

Digital Zoom: 1-8 times, continuous

Laser pointer: Level2; wavelength: 635nm; Power:<1mW

Operation temperature: -40°C to 70°C, without battery

Humidity: <95%RH

Drop: Designed for 2 meters drop test. (GB/T 2423.8/IEC 60068-2-32)

Dimension: 243mm*95mm*142mm

Weight (include battery): 730g

Enclosure rating: IP54
