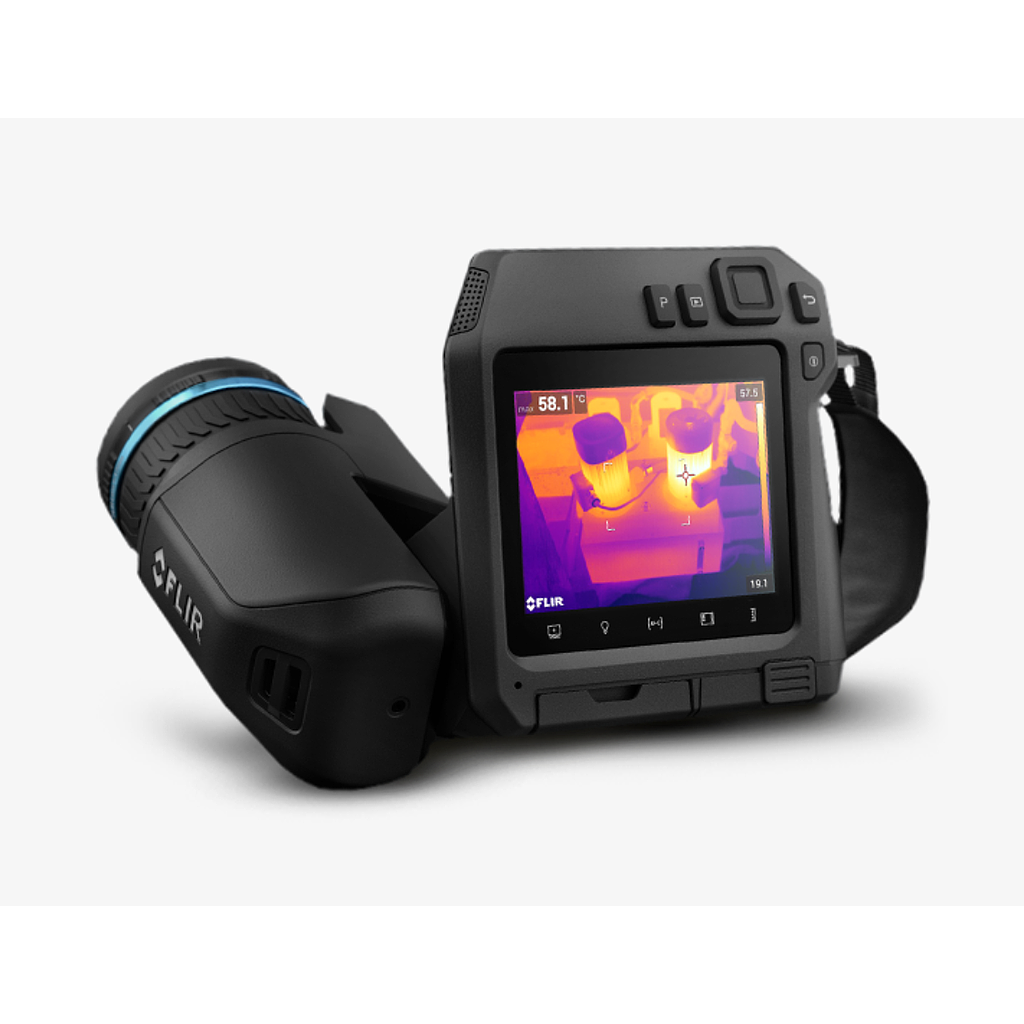

FLIR T530 24°+14° Professional Thermal Camera (-20°C~650°C, f/1.3, 1.5)

IR Resolution: 320 x 240 (76,800 pixels)

Thermal Sensitivity/NETD: <40 mK, 24° @ +30°C (+86°F) <50 mK, 14° @ +30°C (+86°F)

Accuracy: ±2°C (±3.6°F) or ±2% of reading

Digital Camera: 5 MP, with built-in LED photo/video lamp

Display: 4", 640 × 480 pixel touchscreen LCD with auto-rotation

Storage Media: Removable SD card

IMAGING & OPTICAL

Camera software update: Using USB cable or SD card

Color: Black

Color Palettes: Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC

Detector Type and Pitch: Uncooled microbolometer, 17 µm

Digital Camera: 5 MP, with built-in LED photo/video lamp

Digital Camera FOV: 53° × 41°

Digital Zoom: 1–4× continuous

Field of View: 24° × 18°; 14° × 10°

f-number: 1.3, 24°/ 1.5, 14°

Focal Length: 17 mm (0.67 in.), 24°

Focus: Continuous with laser distance meter (LDM), one- shot LDM, one-shot contrast, manual

Gallery: Yes

Image frequency: 30 Hz

IR resolution: 320 x 240 (76,800 pixels)

Laser Alignment: Position is automatically displayed on the infrared image

Lens: 24° + 14°

Lens Identification: Automatic

Minimum Focus Distance:  0.15 m (0.49 ft.), 24°/ 1.0 m (3.28 ft.), 14°

Minimum Focus Distance with MSX: 0.5 m (1.64 ft.), 24°

Non-radiometric IR video streaming: H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi

Picture-in-Picture: Resizable and movable

Radiometric IR video recording: Real-time radiometric recording (.csq)

Radiometric IR video streaming: Over UVC

Resolution: 320 × 240 pixels (VGA)

Spatial resolution (IFOV): 1.31 mrad/pixel, 24°/ 0.75 mrad/pixel, 14°

Spectral Range: 7.5 - 14 µm

Thermal Sensitivity/NETD: <40 mK, 24° @ +30°C (+86°F); <50 mK, 14° @ +30°C (+86°F)

UltraMax: Quadruples pixel count; activated in menu and processed in FLIR Thermal Studio

Video Lamp: Built-in LED light

Viewfinder: No

Visual Image: Yes

Visual Video Recording: H.264 to memory card

Visual Video Streaming: Yes

MEASUREMENT & ANALYSIS

Accuracy: ±2°C (±3.6°F) or ±2% of reading

Automatic hot & cold detection: Automatic maximum/minimum markers within area

Color Alarm (Isotherm): •Above •Below •Interval •Condensation (moisture/humidity/dewpoint) •Insulation

Difference Temperature: Yes

Emissivity Correction: Yes, variable from 0.01 to 1.0 or selected from materials list

Measurement Corrections: Yes

Measurement Function Alarm: Audible/visual alarms (above/below) on any selected measurement function

Measurement Presets: •No measurements •Center spot •Hot spot •Cold spot •User preset 1 •User preset 2

Object Temperature Range: -20°C to 120°C (-4°F to 248°F) 0°C to 650°C (32°F to 1202°F) Optional Calibration: 300°C to 1200°C (572°F to 2192°F)

Reference Temperature: Yes

USER INTERFACE

Display: 4", 640 × 480 pixel touchscreen LCD with auto-rotation

Display Technology: IPS

Languages: 21

Text: Predefined list or touchscreen keyboard

Touch Screen: Optically bonded PCAP

Voice: 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth

POWER

Battery operating time: Approx. 4 hours at 25°C (77°F) ambient temperature and typical use

Battery Type: Li-ion battery, charged in camera or on separate charger

Battery voltage: 3.6 V

Battery weight: 195 g (6.89 oz.)

Charging system: In camera (AC adapter or 12 V from a vehicle) or two-bay charger

Charging Temperature: 0°C to 45°C (32°F to 113°F)

External Power Operation: AC adapter 90–260 V AC (50/60 Hz) or 12 V from a vehicle (cable with standard plug, optional)

Power Management: Automatic shut-down and sleep mode
