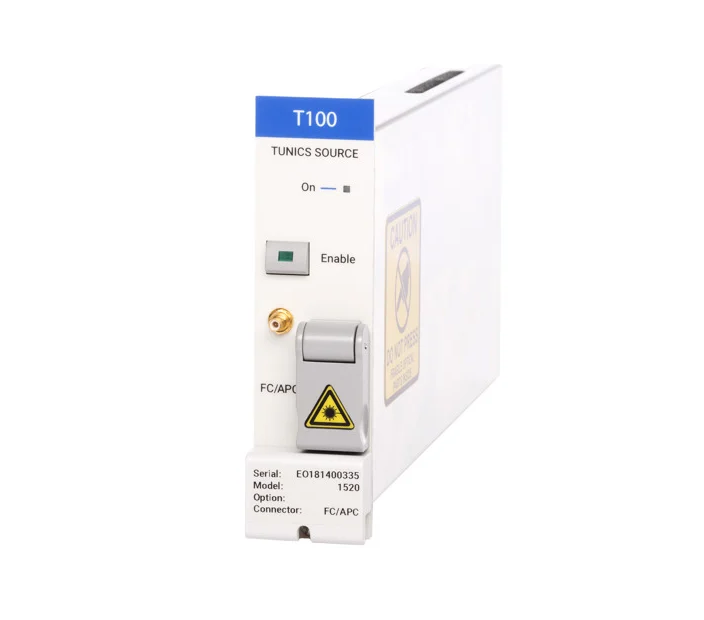

EXFO T100 1520 External cavity tunable laser module (P= 3 dBm: 1465–1575)

Wavelength range (nm):

P= 0 dBm:

P= 3 dBm: 1465–1575

P= 6 dBm: 1495–1555

Signal to source spontaneous emission ratio: ≥ 90 dB / 0.1 nm (typical)

Side mode suppression ratio (dB):  ≥ 45

Stability:

+ Wavelength: ±0.01 nm/h (±0.01 nm / 24 h typical)

+ Output power: ±0.01 dB/h (±0.01 dB / 24 h typical)

Relative intensity noise :  < –140 dB/Hz

Spectral width (FWHM) : 150 kHz typical (coherence control off); > 100 MHz (coherence control on)

Wavelength setting accuracy (nm) :  ±0.2

Wavelength setting repeatability (nm) : ±0.01 (typical)

Wavelength setting resolution (nm) : 0.01 (0.001 option R)

Tuning speed (step-by-step) (nm/s) :  10 (typical)

Analog modulation : 50 Hz to 50 MHz (external)

Digital modulation : 50 Hz to 1 MHz (internal and external)

Optical isolation (dB) : 35

Output fiber type : SMF or PMF (option M)

Output connector : FC/APC narrow key

Laser safety classification : Class 1M
