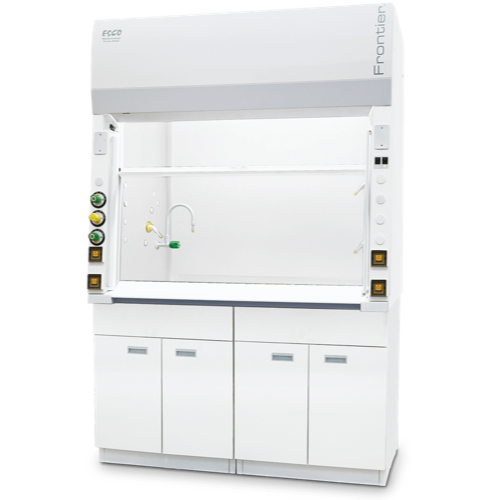

ESCO EFQ-4UDPVW-8 Frontier® Acid DigestionTM Fume Hoods (220-240 VAC, 996 x 689 x 1230 mm)

220-240 VAC, 50/60 Hz, 1Ø

Nominal Size: 1.2 meter

External Dimensions (W x D x H)

Fume Hood unit only: 1220 x 900 x 1400 mm

With Exhaust Collar: 1220 x 900 x 1460 mm

With Fully-opened Sash: 1220 x 900 x 1603 mm

Internal Dimensions (W x D x H): 996 x 689 x 1230 mm

Exhaust Outlet Diameter and Material: 254 mm (10”), PVC Pipe

Number of Exhaust Collars: 1

Fluorescent Lamp Intensity: 930 lux

Construction:

Main Body: Electrogalvanized steel with Epoxy-polyester hybrid Isocide™ powder coating

Internal Liner: Polypropylene

Sash Specification:

Sash Material: Polycarbonate

Sash Configuration: Vertical

Sloping: 5°

Maximum Sash Opening: 640 mm

Electrical:

Cabinet Full Load Amps (FLA): 32 A

Cabinet Nominal Power: 100 W (lighting only)
