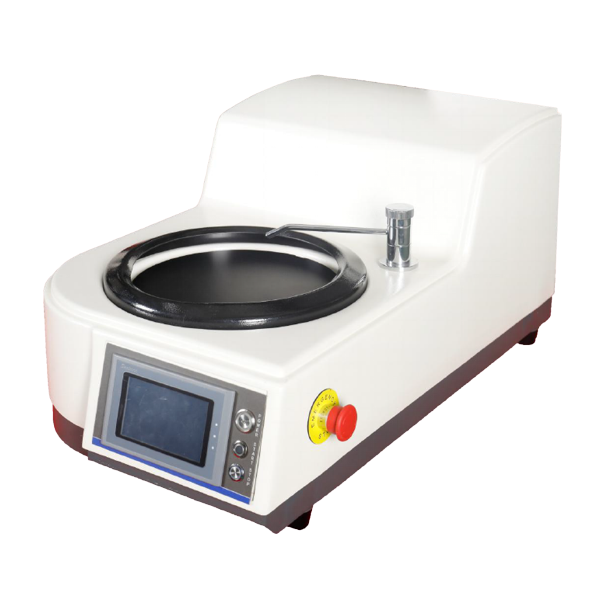

EBP GP-1X Advanced Metallographic Grinding-Polishing Machine (100-1000r/min; 300~800r/min)

Working disc diameter: Standard φ250mm (option:φ203mm, φ230mm)

Speed:

- Stepless: 100-1000r/min

- Constant speed: 300r/min, 500r/min, 600r/min, 800r/min (Constant speed can be set by clients)

Rotate direction: Clockwise - Anticlockwise

Speed display: Touch screen

Working mode: Manual

Power supply: AC220V, 50/60Hz, 0.75KW

Dimension: 670 x 710 x 340mm

Weight: 35kg

Standard accessories:

Pressing ring φ250: 1

Abrasive paper: 8

Polishing cloth: 2

Water inlet pipe φ8 φ32: 1

Quick-connect coupling SNZ08-04: 1

Manual: 1

Water outlet pipe φ32: 1

Rubber washer with strainer: 1

Raw strip: 1 roll

Hose clamp 21-44: 1

Triangle valve 4: 1

Certificate: 1
