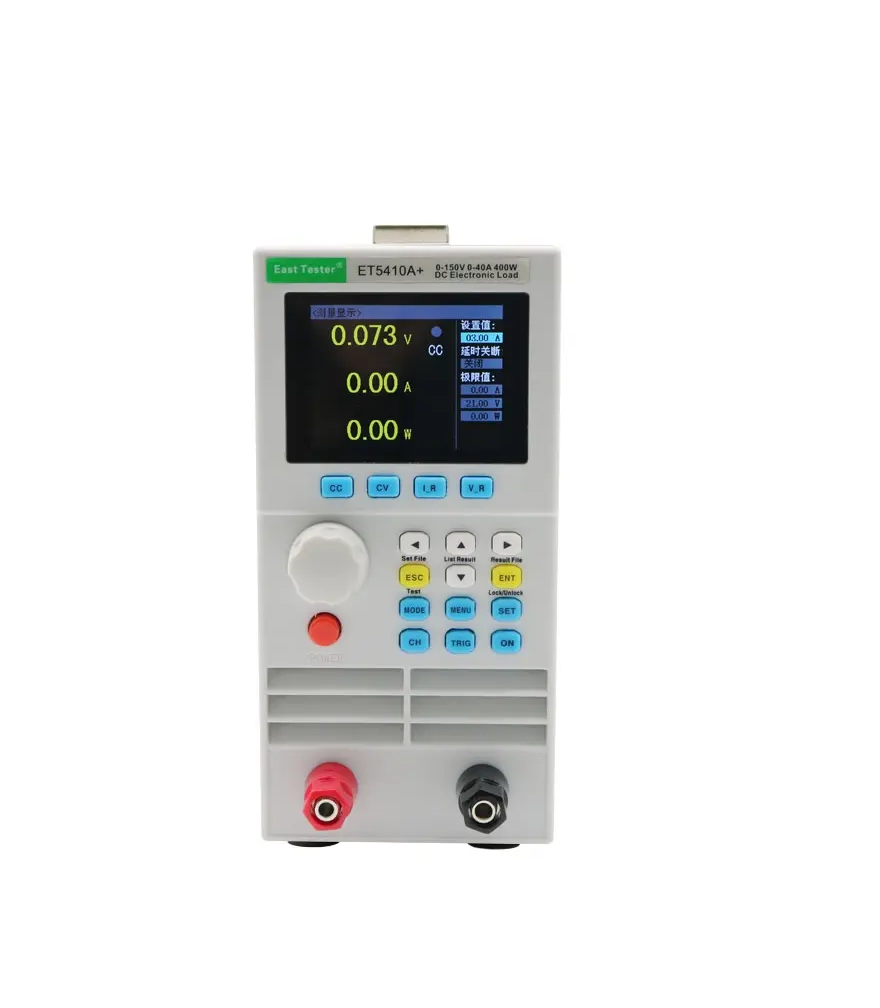

EAST TESTER ET5410A+ Programmable DC electronic load (Single Channel, 400W; 0-150V; 0-40A)

Specifications

- Rated input:

+ Power: 400W

+ Input voltage: 0-150V

+ Input current: 0-40A

- Range:

+ CV mode: 0.1~19.999V,0.1~150.00V

+ CC mode: 0~3.000A,0~40.00A

+ CR mode: 0.05Ω~1 kΩ，1 kΩ~4.5kΩ

+ CP mode: 0~400W

- Tran Test

+ Mode: CC，CV

+ T1&T2: 50ms~60s

- Battery Test:

+ Discharge mode: CC，CR

+ Maximumdischarge capacity: 9999Ah

+ Resolution: 1mA，10mA，10mΩ，100mΩ

- Range of measurement:

+ Voltageread-back value: 0~19.999V,0 ~150.00V

+ Currentread-back value: 0~3.000A,0~40.00A

+ Powerread-back value: 400W

- Scope of protection:

+ Over Voltage Protection(OV): ＞21V OR ＞155V over voltage protection

+ Over Current Protection(OC): ＞3.1 or ＞42A over current protection

+ Over Power Protection(OP): 410W

+ Over Temperature Protection: 85℃

General technical specifications:

- Power supply voltage: 100Vac±10%~240Vac±10%，50/60Hz

- Display: 2.8-inch TFT LCD screen with resolution of 320×240

- Operating temperature: 0℃ to 40℃

- Storage temperature: -10℃ to 70℃

- Relative humidity: < 80%

- Interface: standard USB, optional RS232(or 485)

- Size: 90mm×190mm×300mm (width × height × depth)

Standard accessories:

- Three-core power cord * 1

- Power fuse * 2

- User manual*
