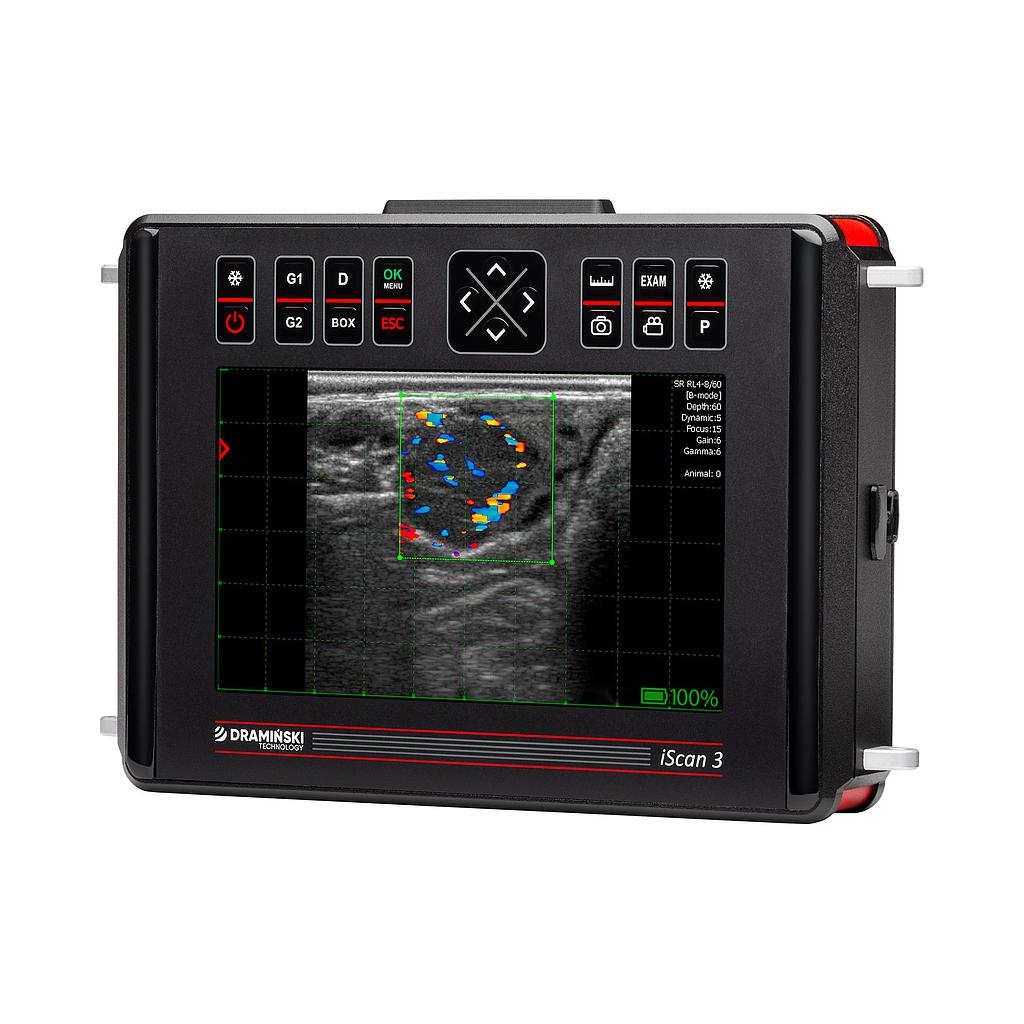

DRAMINSKI iScan 3 Field Ultrasound Scanner With Colour Doppler Imaging (2-12 MHz)

Imaging modes

• B Mode

• Color Doppler

Frequency range: 2-12 MHz (depends on probe)

Probes

• Convex 2-8 MHz

• Abdominal linear 4-12 MHz

• Microconvex 4-9 MHz

• OPU 4-9 MHz

• Rectal linear 4-9 MHz

• Rectal convex 2-8 MHz

Dynamic Focus: Yes

Image management

• Freeze

• Invert left-right

• Saving images

• Saving cine loops

Imaging adjustment

• Dynamic range

• Sun mode

• LuciD

Presets

• Depend on probe:

• Cow Repro, Pregnancy, Sexing, Uterus

• Equine Repro, Tendons, Testicles

• Foal Abdomen

• Dog Abdomen

• Foetus

• Sheep

• Foal Lungs

Postprocessing: Yes (LuciD)

Measurements

• Basic: Distance, Follicle, Ellipse Area, Grid

• Obstetric package: aging tables for different species

• Doppler: Flow Area %

Workflow tools

• Animal counting

• Refined, ergonomic keyboard with backlight

Display

• 7″ LCD LED

• 500 cd/m2

• 800 x 480 px

Control panel: Membrane keyboard with backlight

Memory: 8GB

Exported file format: PNG, MP4

Exporting data method

• To external flash drive (USB-C)

• To mobile App by WiFi

Multimedia ports: USB-C

WiFi connection to mobile devices: Yes, built in. Devices based on Android and iOS operating systems. Draminski iScan App required.

Power supply: Battery

Battery operating time: Up to 4 h 30 mins.

Battery charging time: Up to 4 h

Booting time: About 25 s

Dimensions: Width 27 cm, Height 18 cm, Depth 7 cm

Weight (with probe and battery): 2.6 kg

Ingress Protection (IP) rating: IP32

Accessories

• Stand

• iLens wireless goggles

• OPU

• Extension and T-holder for rectal convex probe

• Transport bag

• Suspenders

• Waist belt

• Standoff
