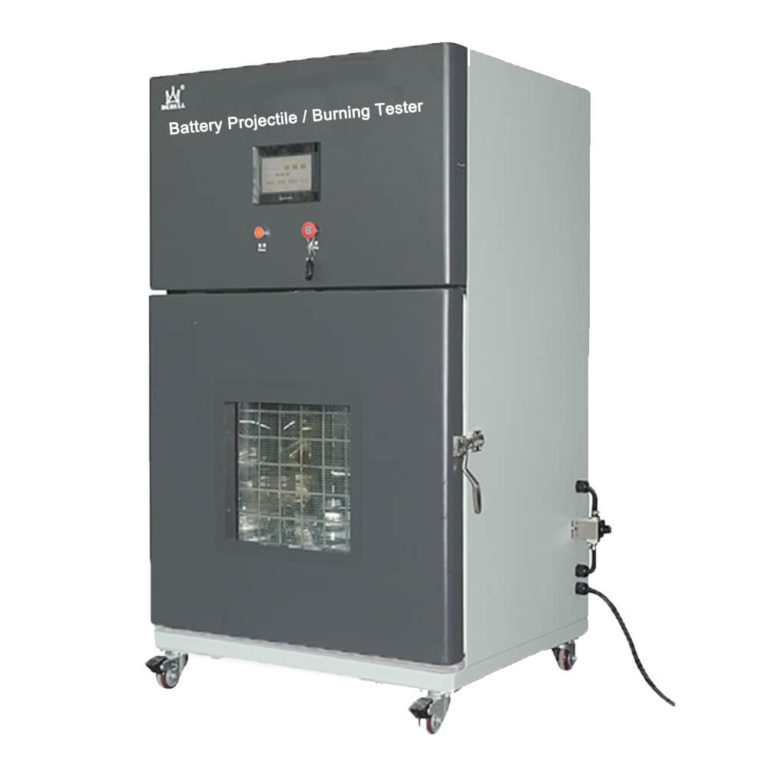

DGBell BE-8105 Battery Projectile / Burning Test Chamber (10 ～ 75 ± 2mm)

Structure: All-in-one structure, the door uses explosion-proof lock and explosion-proof chain

Burner: Bunsen burner with inner diameter of 0.375 inch (9.5mm) and length approx. 100mm

Flame Application Time: 99H 59M 59S

Flame Height: *10～75±2mm（Adjustable）

*Mesh should be placed approx. 38mm above the flame (GB31241-2014)

Test Rod Diameter: 1/4inch（6.35mm）× 14inch(355.6mm)

Octagon Shape Stainless Steel Mesh Enclosure

Distance between each parallel sides: 24 inches (610mm)

Height: 14 inches (305mm),

Angle iron : spec. 12.7mmX12.7mm

Mesh Top Cover: Square shape with length approx. 650mm

Test Aluminum Mesh Specification:0.010inch (0.25mm) 16 grit x16 grit

Test Round Hole Surface Diameter: 102mm

Ignition Device: Automatic ignition

Display Mode: PLC touch + Remote control

Observation window: 390x360mm (20mm thick explosion-proof glass, install explosion-proof stainless steel mesh)

Control Method: Remote control, automatic control through the entire test.

Combustion Gas Requirements: High purity liquefied petroleum gas. (Prepared by user)

Data Output: Test data can be output by USB flash disk directly .

Safety Protection: Explosion-proof pressure relief device, smoke exhaust device, fire extinguishing system, electronic door lock system, safety stop switch

Options: Temperature acquisition system, voltage acquisition system, video monitoring system
