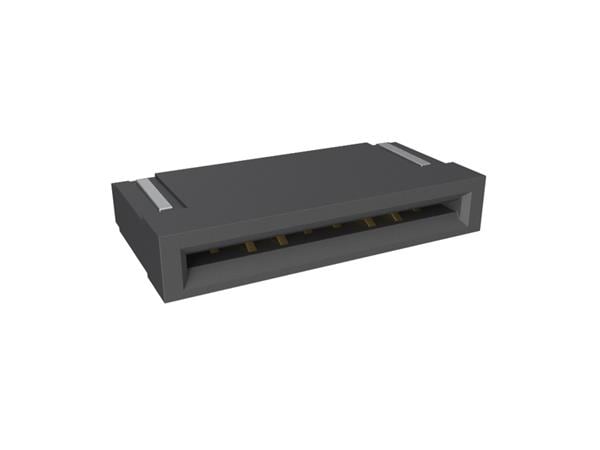

Amphenol FCI HFW8R-2STAE1H1LF Board Mount 1.00mm Flex Connector, HFW-R series, 8 Position, Upper Side Contact, Side Entry Surface Mount Non-ZIF Connector, Lead Free, Gold Plate Terminals, Halogen-free.
Manufacturer: Amphenol FCI Model: HFW8R-2STAE1H1LF - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Pitch: 1 mm
Unit Weight: 304.360 mg
Current Rating: 1 A
Mounting Angle: Right Angle
Voltage Rating: 100 VAC, VDC
Contact Plating: Gold
Contact Location: Top Contact
Contact Material: Phosphor Bronze
Housing Material: Thermoplastic (TP)
Termination Style: SMD/SMT
Flammability Rating: UL 94 V-0
Number of Positions: 8 Position
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 55 C
