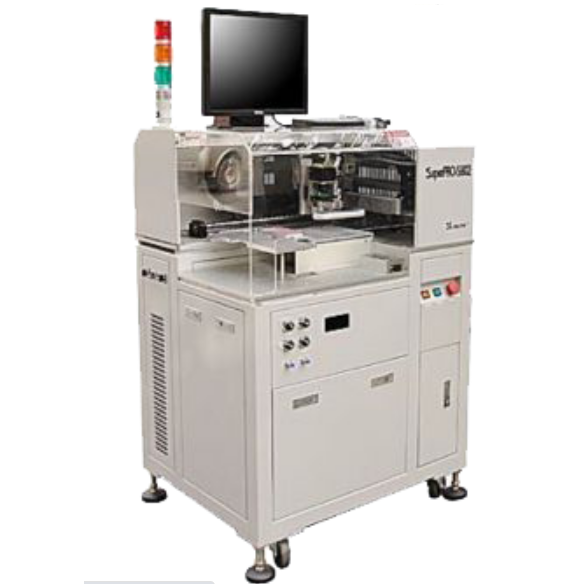

Xeltek SuperBot-2 自动IC编程器 (16 sockets)

Motion System

+ Motion System: High Precision Servo System

+ Resolution: X axis: ±0.02mm; Y axis: ±0.02mm; Z axis: ±0.02mm; θaxis: ±0.1°

+ Stroke: X axis: 1000mm; Y axis: 500mm; Z axis: 40mm

+ Pick & Place Header Accuracy: ±0.07mm

Operable Chip Size: Minimum: 2x2mm; Maximum: 25x25mm

1200 Units Per Hour

Vision System:

+ Camera: Downward CCD camera for sockets / pick & place spots positioning. 512×512 pixels

+ Field of View: 30x30mm

Power Consumption: 1.5KVA

Air:

+ Pressure: 0.6MPa

+ Consumption: 30 liters/min

Size:

+ Main Machine: 820(L)×640(W)×1550(H)mm

+ Auto Tray: 1100(L)×380(W)×1300(H)mm

+ Tape-Out: 1100(L)×380(W)×1300(H)mm

Weight: Main machine: 248kg

PC Interface: USB 2.0, LAN

Items included:

+ 4 x SuperPro 7500

+ Built-in Industrial PC with Windows 7

+ 19" LCD Display

+ Keyboard and mouse

Optional Accessories:

+ Socket Adapters (Socket Pressing)

+ Automated Tray Handler

+ Tape-out Packing Handler

+ Electric Tape-in Feeder

+ Laser Marker

+ Tube In Device

+ Tube Out Device

+ Tape Ink Marker

+ Auto Tray Ink Marker

+ Nozzles
