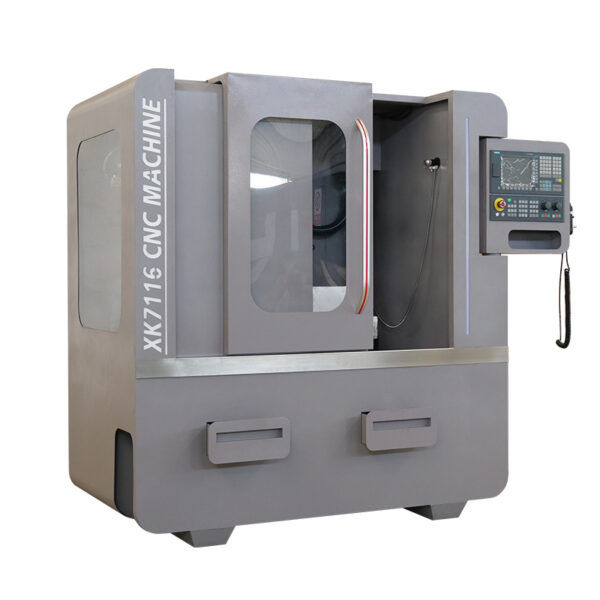

WMT CNC XK7116 数控铣床 (18000RPM)

X axis travel: 350mm

Y axis travel: 160mm

Z axis travel: 400mm

Spindle nose to table distance: 476.4mm

Spindle center to column distance: 161mm

Worktable size: 600X163mm

Main motor: 3KW

Spindle speed: 18000rpm

Coolant system: liquid cooling

Spindle taper: BT30

Capacity of ATC: 8T

Air compressor pressure: 12L

Lubricating pump capacity: 1L

Working light: 10W

Cooling pump: 40W

Controller system: after1500MDC-4

XY axis servo motor torque: 2.4N.M

Z axis servo motor torque: 4N.M

XYZ fast moving speed: 8

XY Linear guideway: 15mm(Taiwan HIWIN)

Z linear guideway: 20mm(Taiwan HIWIN)

X axis ball leadscrew: 1605(Taiwan TBI)

YZ axis ball leadscrew: 2005(Taiwan TBI)
