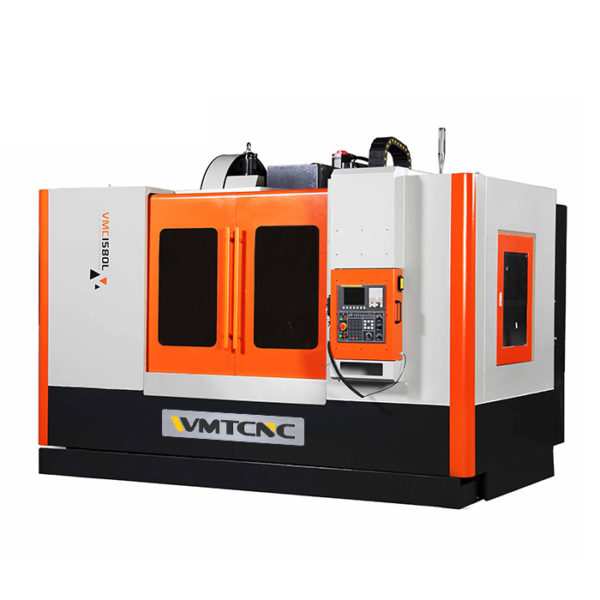

WMT CNC VMC1580L 立式加工站
制造商: WMT CNC Model: VMC1580L 保障: 12 Month - 报价要求
- 联系
Worktable size (LxW): 1600x800mm
T-slot (NxWxD): 7x22x110mm
X/Y/Z axis travel: 1500/800/700mm
Distance from spindle center to column: 865mm
Distance from spindle nose to worktable surface: 185-885mm
Spindle taper: BT50
Spindle power: 15/18.5kw
Max.spindle speed: 6000rpm
Max.feed speed: 8m/min
Rapid feed speed (X/Y/Z): 20/20/12m/min
X/Y/Z axis ball screw: 5010
Tool change time(T-T): 3.5s
Positioning accuracy (X/Y/Z): ±0.015mm
Re-positioning accuracy (X/Y/Z): ±0.010mm
LxWxH: 4300x3600x3200mm
Max.loading of worktable: 1500kgs
Machine weight: 15000kg
