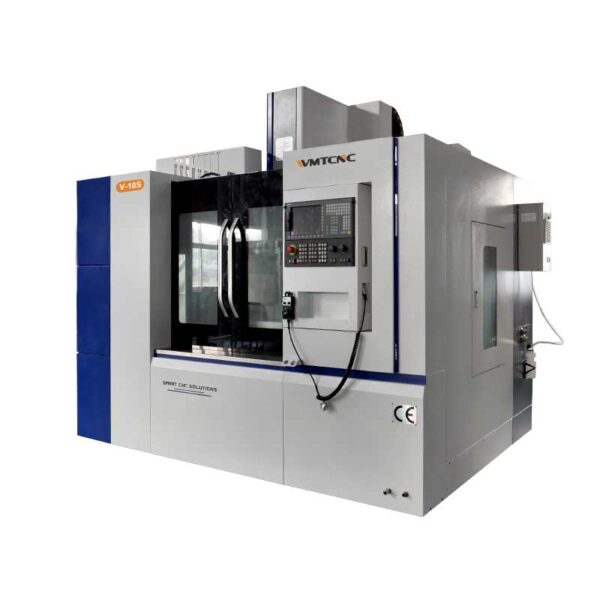

WMT CNC V10S 立式加工站 (12000RPM)
制造商: WMT CNC Model: V10S 保障: 12 Month - 报价要求
- 报价要求
- 联系
Worktable size: 1200×550mm
T-slot: 18×5×90mm
Max. loading of worktable: 600kg
Spindle center to column distance: 580mm
Spindle nose to table distance: 130-680mm
Rail type: Linear Guideway
Spindle taper: BT40
Spindle speed: 12000rpm
Main motor power: 7.5kw
X axis travel: 1000mm
Y axis travel: 550mm
Z axis travel: 550mm
X/Y/Z rapid traverse: 48000mm/min
Positioning accuracy: ±0.006mm
Re-positioning accuracy: ±0.003mm
Air pressure: 0.5-0.8mpa
Coolant: air conditioning
Overall dimension(LxWxH): 3150×2800×3150mm
Weight: 6000kg
