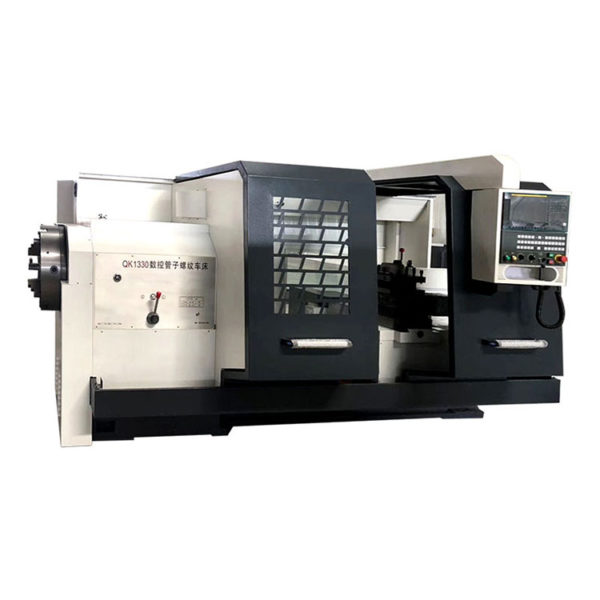

WMT CNC QK1330 数控管螺纹车床 (800mm)

Max dia.swing over bed(mm): 800

Max dia.swing over cross slide(mm): 480

Max.length of work-piece(mm): 1500/3000/4000/5000

Width of bed(mm): 600/755

Spindle bore(mm): 305

Power of spindle motor: 15kW

Mode of spindle speed: Two gears, smooth adjustment

Range of spindle speed(r/min): (L):20-100, (H):100-300

Max.traverse of X/Z(mm): X:450/550; Z:1250

X/Z rapid traverse(r/min): 4000

X-axis motor

     Speed(r/min):1500

     Torgue(N.m): 15/18

     Power(kw): 2.8

Z-axis motor

Speed(r/min): 1500

Torgue(N.m): 18/22

Power(kw): 3.8

Tailstock quill

Diameter(mm): 100

Travel(mm): 250

Taper: Morse NO.6

Electric tool-post

Model: LDB4-6180

No.of tool stations: Vertical four-station

Dimension(mm):280×280

Chuck: K11-630 three jaw chuck

Positioning accuracy(mm): 0.02

Overall dimensions(L*W*H)(mm): 4600×2060/2100×2100

Machine weight(kgs): 7500/9500
